CR06550 Kollmorgen

CR06550 KOLLMORGEN Motor Control Module

Brand：KOLLMORGEN Model number：CR06550

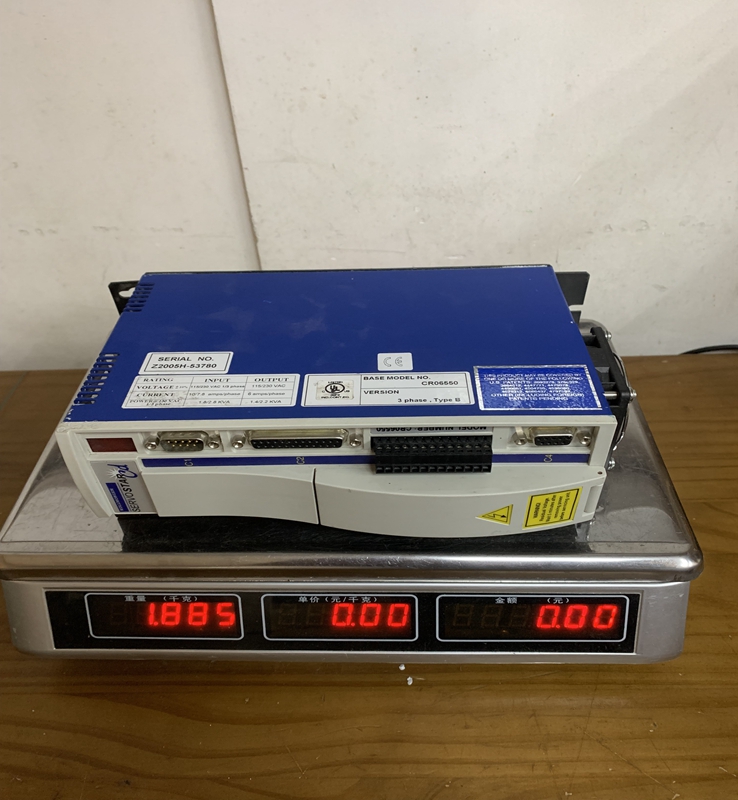

Country of origin: U.S.A. Product weight：0.55kg

HS code：8517623990

Inquire Now

Product Details：

Product Dimensions：

The Kollmorgen CR06550 is an industrial servo drive that belongs to the Kollmorgen Servostar CD Drive Series. It is an advanced electronic control unit designed to precisely regulate the speed, acceleration, position, and function of synchronous and asynchronous industrial motors within a servo system. The CR06550 is a legacy product, but it remains a crucial component for motion control applications using the Servostar platform.

Product Specifications

Product Type: Industrial Servo Drive / Amplifier
Series: Servostar CD Drive Series
Nominal Input Voltage: $115/230 \text{ VAC}$ $\pm 10\%$
Phase: Operates on single-phase or three-phase input power.
Continuous Output Current (RMS): $6 \text{ Amps/Phase}$
Input Current (Typical): $10 \text{ Amps}$ (at $115 \text{ VAC}$ ) or $7.8 \text{ Amps}$ (at $230 \text{ VAC}$ )
Output Power (Typical): $1.4/2.2 \text{ KVA}$ (at $230 \text{ VAC}, 1/3 \text{ Phase}$ )
Protection Class: The drive housing unit provides IP20 protection, meaning it is protected against solid objects larger than $12.5 \text{ mm}$ but has no significant protection against liquids and must be installed in a suitable external enclosure.
Internal Features: Includes an analog communication module, support for sine encoders, software resolver functionality, and an extended input-output interface.

Product Advantages

High Control Precision: As a Servostar drive, the CR06550 offers excellent dynamic response and high-resolution control, which is essential for accurate motion profiles in demanding industrial tasks.
Versatile Feedback Support: It can interface with various motor feedback systems, including sine encoders, resolvers, and incremental encoders, providing flexibility in motor selection and application design.
Robust Design: Engineered for industrial environments, the drive is built for reliability and a long service life, often exceeding seven years without major breakdown under optimal conditions.
Compatibility: It is designed to work seamlessly with Kollmorgen's line of synchronous and industrial servo motors, creating a complete and optimized motion control system.
Legacy Support: Although superseded by newer generations, the CR06550 continues to be supported for maintenance and repair, providing stability for existing machinery.

Important Considerations (Precautions)

Discontinued Status: The CR06550 is a legacy product. While support and repair services are available through various vendors, new designs should consider newer Kollmorgen Servostar or AKD series drives for future compatibility and access to the latest features.
Professional Installation: Only individuals who are properly trained in Kollmorgen products and familiar with the drive's documentation should handle the configuration, wiring, installation, and operation of this motor drive.
Environmental Protection: Due to its IP20 rating, the drive must be mounted inside an external cabinet or enclosure that meets higher industrial protection standards (such as IP54 or greater) to prevent contamination by liquids and fine dust.
Safety Standards: All installation and wiring procedures must strictly comply with national and local electrical codes and safety regulations, including disconnecting all power sources before performing any service or wiring work.
Configuration Tool: The drive is typically configured using the Kollmorgen software tools, such as the MotionLink software, which requires a PC connection via the serial port.

Product Applications

The CR06550 servo drive is used across various industrial sectors that require high-performance, precision motion control.

Packaging and Converting Machinery: Used for indexing, cutting, sealing, and material feeding operations where exact positioning and speed synchronization are critical.
Material Handling and Logistics: Employed in high-speed pick-and-place systems, automated guided vehicles (AGVs), and automated storage and retrieval systems (AS/RS) for fast and precise movement.
Food and Beverage Processing: Utilized in machinery for filling, bottling, and slicing operations, often selected for its ability to handle demanding, continuous duty cycles.
Printing and Web Handling: Provides precise tension and speed control for rollers and guides in printing presses and web processing equipment.
General Factory Automation: Found in various machine tools, metal forming machines, and hoisting machines that require controlled, dynamic motion.

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！

KOLLMORGENS3030 1-NA

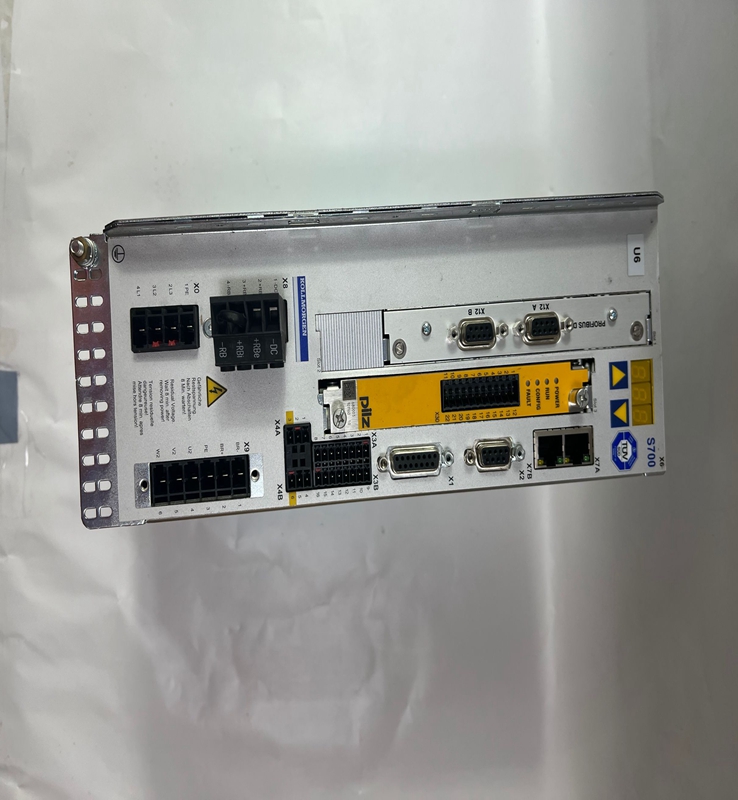

KOLLMORGENS72402-NANANA
