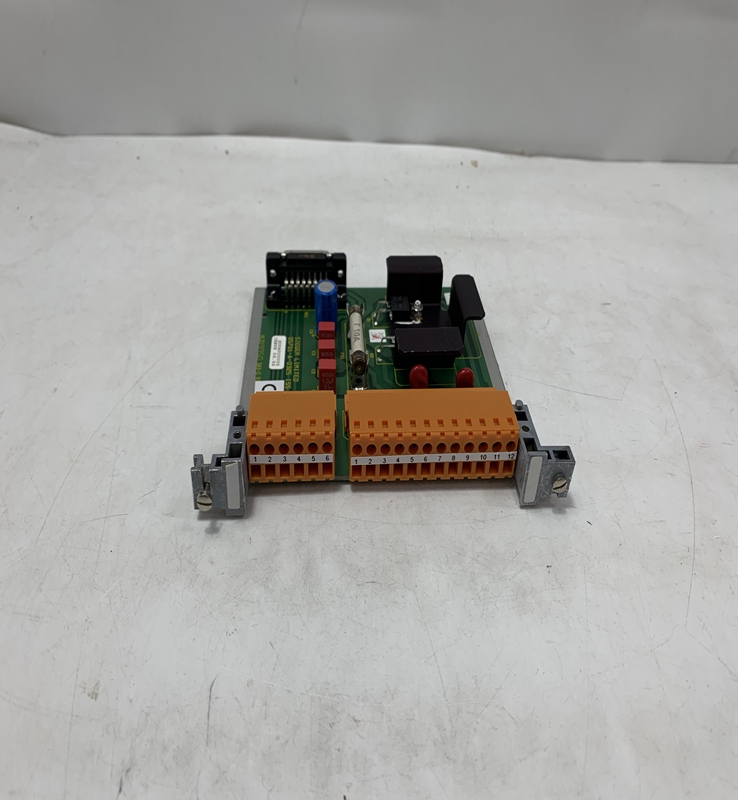

ZM50D10B01 HONEYWELL Output Module

Brand：HONEYWELL Model number：ZM50D10B01

Country of origin: United States Product weight：0.4kg

HS code：8517623990

Product Details：

Product Dimensions：

The HONEYWELL Output Module is a critical component within industrial control systems, designed to translate digital commands from the controller (like a PLC or DCS) into physical actions in the field. These modules provide the necessary interface to activate or deactivate final control elements such as relays, solenoids, motor starters, lights, and alarms. They are engineered for high reliability, fast response, and seamless integration into larger control architectures, primarily within the Experion Process Knowledge System (PKS) or similar control platforms.

Product Specifications (Product Parameters)

The exact specifications vary depending on the specific series (e.g., C300, HC900, or Safety Manager), but a typical HONEYWELL Digital Output Module will have the following general parameters:

Output Type: Digital (Discrete) or Analog.

Digital/Discrete: Primarily Voltage Source (e.g., 24V DC) or Relay Contact (Dry Contact).
Analog: Typically 4-20 mA or 0-10 V DC.

Channel Density: Common configurations include 8, 16, or 32 channels per module.
Voltage Range: For digital outputs, common ranges are 12V DC, 24V DC, or 120/240V AC.
Current Rating (per channel): Typically 0.5 A to 2.0 A for digital sinking/sourcing outputs.
Isolation: Channel-to-channel and channel-to-backplane isolation is often included to protect sensitive electronics.
Diagnostics: Advanced built-in diagnostics for Open Circuit Detection (OCD), Short Circuit Detection (SCD), and Output Fault Status.
Response Time: Fast switching times, often in the range of 1 ms to 10 ms.
Operating Temperature: Generally designed for harsh industrial environments, typically $-40^\circ \text{C}$ to $70^\circ \text{C}$ .

Product Advantages

The HONEYWELL Output Module offers several key advantages that make it a preferred choice for industrial automation:

High Reliability and Robustness: Built with high-quality components to ensure stable operation and a long service life in challenging industrial conditions, minimizing unscheduled downtime.
Advanced Diagnostics: Integrated fault detection capabilities provide real-time status of field wiring and load health, allowing operators to quickly identify and troubleshoot issues before they escalate.
Hot-Swappable Design: Many modules support hot-swapping, enabling replacement or maintenance of the module without powering down the entire control system, thus maximizing process uptime.
Simplified Wiring: Features like detachable terminal blocks and high channel density simplify installation and reduce wiring complexity and cabinet space requirements.
Seamless Integration: Designed to work perfectly with the HONEYWELL Experion PKS platform, ensuring reliable communication and unified data management.
Compliance with Safety Standards: Specific modules are certified for use in safety-critical applications (e.g., SIL 2 or SIL 3), providing trusted operation in Emergency Shutdown (ESD) or Fire and Gas (F&G) systems.

Safety and Operation Precautions (Notes on Attention)

To ensure safe and optimal operation, the following precautions should be strictly observed:

Power and Grounding: Always verify that the correct power supply voltage is applied to the module and that the system is properly grounded according to the manufacturer's specifications to prevent electrical noise and damage.
Load Current: Never exceed the maximum current rating specified per channel or the total current rating for the module to prevent overheating and component failure.
Inductive Loads: When controlling inductive loads (solenoids, relays, motors), use external transient suppression circuits (e.g., diodes or RC snubbers) to protect the module's output circuitry from damaging voltage spikes.
Safety Interlocks: Do not rely solely on the control module for critical safety functions; always implement appropriate hardwired interlocks or use a certified Safety Instrumented System (SIS) for safety-critical loops.
Environmental Control: Operate the module within the specified temperature and humidity ranges to avoid performance degradation or damage to the electronics.
Wiring Procedures: Use the correct wire gauge and insulation type, and adhere to proper terminal torque to ensure secure, low-resistance connections.

Product Applications (Product Application)

HONEYWELL Output Modules are versatile and utilized across a broad range of industrial sectors and control functions:

Process Control: Activating control valves, pump motors, and heating elements in industries like oil and gas, refining, petrochemicals, and pharmaceuticals.
Manufacturing and Assembly: Controlling pneumatic cylinders, conveyor belts, robotic actuators, and electric heaters in discrete manufacturing environments.
Safety Systems: In Safety Instrumented Systems (SIS), they are used to drive solenoids for quick-acting valves (e.g., blowdown valves) and trigger alarms or beacons during emergency shutdowns.
Building Automation: Controlling HVAC dampers, chiller units, lighting systems, and access controls in large commercial and industrial buildings.
Water/Wastewater Treatment: Operating chemical dosing pumps, mixers, and aeration blowers to manage treatment processes.
Power Generation: Controlling breakers, excitation systems, and fuel handling equipment in power plants.
