SDO-0424 HONEYWELL

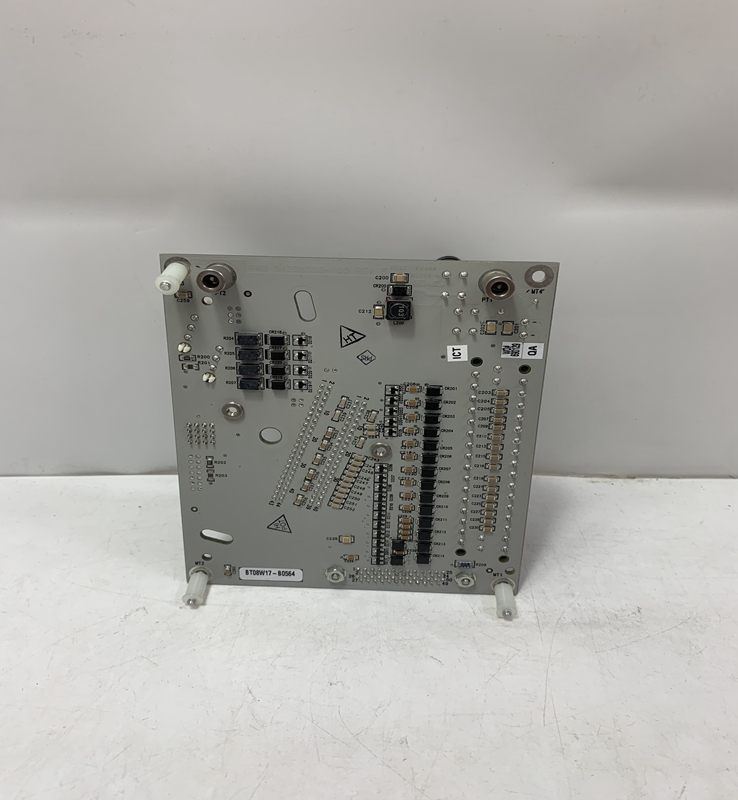

SDO-0424 HONEYWELL Analog Input Module

Brand：HONEYWELL Model number：SDO-0424

Country of origin: United States Product weight：0.4kg

HS code：8517623990

Product Details：

Product Dimensions：

The Honeywell Analog Input Module is a vital component within industrial control systems, such as the Experion PKS or safety systems like Safety Manager. Its primary function is to convert continuous, real-world analog signals (like voltage or current from sensors) into a discrete digital format that the control system's processor can understand and process.

This module acts as the crucial interface between the field instrumentation (e.g., pressure transmitters, thermocouples, level sensors) and the Distributed Control System (DCS) or PLC. It ensures accurate and reliable measurement of physical variables within the process plant.

Product Parameters (Specifications)

While specific parameters vary greatly depending on the series (e.g., C-Series, Series 8, FTE, or safety modules), the typical critical specifications include:

Input Types: Accepts standard industrial signals such as 4-20 mA, 0-20 mA, 1-5 VDC, 0-5 VDC, or 0-10 VDC. Some specialized modules also support direct Thermocouple (TC) or Resistance Temperature Detector (RTD) inputs.
Channel Count: Commonly available in 8-channel or 16-channel configurations per module.
Resolution: A key indicator of accuracy, typically 12-bit, 14-bit, or 16-bit. Higher resolution means finer measurement granularity.
Accuracy: Often specified as a percentage of the full scale, usually ranging from $\pm 0.1\%$ to $\pm 0.5\%$ .
Update Rate/Scan Time: The speed at which the module digitizes and reports the input to the processor, measured in milliseconds (ms).
Isolation: Specifies whether channels are isolated from each other and/or from the system common, critical for noise immunity and safety. Isolation is typically channel-to-channel or group isolation.
Power Consumption: Specified in Watts (W) or Amps (A) at the supply voltage.
Operating Temperature Range: Standard industrial ranges, typically $0^\circ\text{C}$ to $60^\circ\text{C}$ ( $32^\circ\text{F}$ to $140^\circ\text{F}$ ).

Product Advantages

The Honeywell Analog Input Module is designed for high-performance and reliability in demanding industrial environments, offering several key advantages:

High Reliability and Redundancy Support: Many modules support redundant configurations (e.g., in a fault-tolerant system), ensuring continuous operation even if a component fails.
Advanced Diagnostics: Built-in intelligence for fault detection such as open-circuit (wire break), short-circuit, and out-of-range signal monitoring, simplifying maintenance.
High Density and Small Footprint: Maximizing the number of channels per module reduces the required control cabinet space and wiring complexity.
Hot Swappable Capability: Certain series allow for replacement of the module while the system is online and running, minimizing process downtime.
Excellent Noise Immunity: Robust design and filtering ensure that electrical noise from the industrial environment does not corrupt the measurement accuracy.
Seamless Integration: Designed to integrate flawlessly with Honeywell's proprietary control platforms, streamlining configuration and data management.

Precautions (Important Considerations)

Proper handling, installation, and usage are critical for the module's performance and longevity:

Proper Grounding and Shielding: Ensure field wiring shielding is correctly terminated and the module rack is properly grounded to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI).
Wiring Standards: Always use the recommended wire gauge and strictly adhere to the wiring diagrams provided in the installation manual to prevent signal degradation or connection issues.
Calibration Check: Periodically verify the module's calibration against a certified standard instrument to maintain measurement accuracy, especially after initial installation or maintenance.
Environmental Control: Operate the module within the specified temperature and humidity limits. Avoid excessive vibration or exposure to corrosive gases.
Power Verification: Confirm that the power supply voltage is stable and within the module's specified operating range before connecting any field devices.
Channel Loading: Ensure the impedance of the connected field device does not exceed the module's input resistance or driving capacity, particularly for current inputs.

Product Applications

Honeywell Analog Input Modules are foundational elements in nearly every industry that requires automated control and monitoring:

Oil and Gas: Monitoring pressure, temperature, and flow in pipelines, refineries, and offshore platforms.
Chemical and Petrochemical: Measuring reaction temperatures, levels in vessels, and critical flow rates for safety and quality control.
Power Generation: Reading steam temperatures, boiler pressures, and fuel flow in conventional and renewable energy plants.
Pharmaceutical and Biotech: Precise temperature and $\text{pH}$ monitoring in fermenters and bioreactors where tight control is essential for product integrity.
Water and Wastewater Treatment: Monitoring tank levels, flow rates through pumps, and water quality parameters.
Manufacturing: Control and monitoring of process variables in continuous operations like pulp and paper, metals processing, and textiles.
