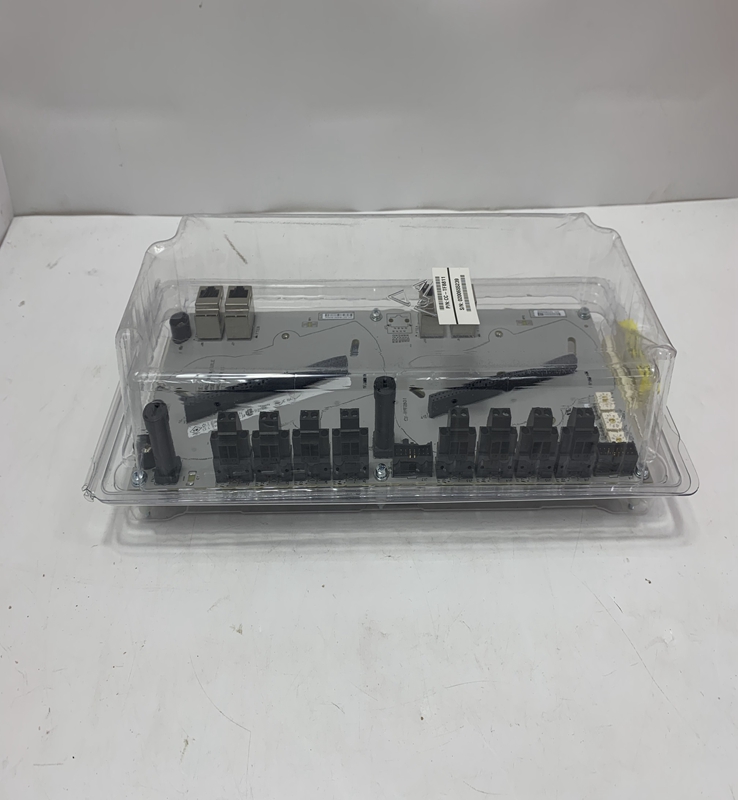

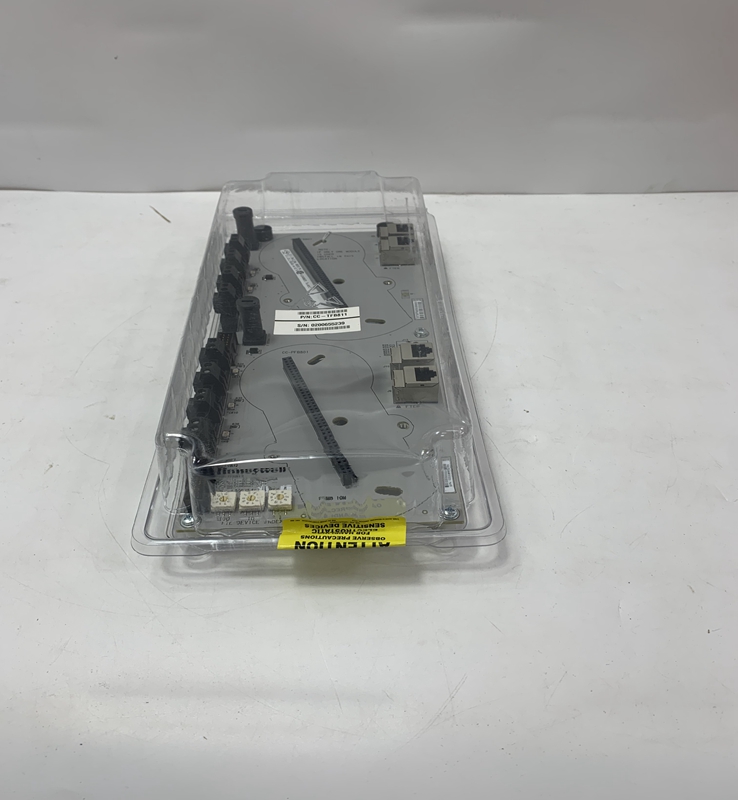

RA30NASD103A HONEYWELL

RA30NASD103A HONEYWELL Central Control Unit

Brand：HONEYWELL Model number：RA30NASD103A

Country of origin: United States Product weight：0.4kg

HS code：8517623990

Product Details：

Product Dimensions：

The Honeywell Central Control Unit (CCU) is the core component and central processing hub for a wide range of integrated building management and industrial control systems. It serves as the primary interface and control engine, coordinating all networked field devices, sensors, and actuators to ensure optimal performance, safety, and energy efficiency within a facility. The CCU typically employs advanced microprocessors and robust, purpose-built operating software to execute complex control strategies, manage data logging, and facilitate communication across various protocols. It is designed for high reliability and continuous operation in demanding environments.

Product Specifications (Product Parameters)

The specific parameters can vary depending on the model (e.g., HVAC CCU, Security CCU, etc.), but typical specifications include:

Processor: High-speed, industrial-grade multicore CPU (e.g., $1.5\text{ GHz}$ or higher).
Memory: $2\text{ GB}$ to $8\text{ GB}$ DDR4 RAM for execution, with an additional $16\text{ GB}$ to $64\text{ GB}$ flash storage for firmware and data logs.
Networking: Multiple Ethernet ports ( $10/100/1000\text{ Mbps}$ ), often supporting redundant ring topologies.
Communication Protocols: Native support for key industrial and building automation protocols such as BACnet/IP, Modbus TCP/RTU, LonWorks, and proprietary Honeywell protocols (e.g., C-Bus, EBI/Niagara).
Input/Output Capacity: Varies significantly; may support hundreds or thousands of physical I/O points via connected modules.
Operating Voltage: Typically $24\text{V AC}$ or $24\text{V DC}$ , with low power consumption for continuous operation.
Operating Temperature: Wide range, typically $0^\circ\text{C}$ to $50^\circ\text{C}$ ( $32^\circ\text{F}$ to $122^\circ\text{F}$ ).
Humidity: $5\text{%}$ to $95\text{%}$ relative humidity, non-condensing.
Certifications: UL Listed, CE, FCC, and relevant regional safety and electromagnetic compatibility (EMC) standards.

Product Advantages

The Honeywell CCU offers significant benefits for control applications:

Superior Integration and Scalability: It acts as a unified platform capable of seamlessly integrating diverse subsystems, including HVAC, lighting, security, and fire safety, allowing for holistic control and monitoring from a single point. It can scale from small commercial buildings to large campus environments.
High Reliability and Redundancy: Designed for mission-critical applications, many models feature redundant power supply options, failover capabilities, and non-volatile memory to ensure continuous operation and data integrity even during power fluctuations or component failures.
Advanced Control Capabilities: The CCU supports complex control logic, including proportional-integral-derivative (PID) loops, optimized start/stop routines, and advanced fault detection and diagnostics (FDD), leading to improved system efficiency and reduced energy consumption.
Enhanced Cybersecurity: It incorporates features such as encrypted communication, role-based access control, and secure boot processes to protect the critical infrastructure from unauthorized access and cyber threats.
User-Friendly Interface: While the CCU itself is a backend component, it connects to intuitive graphical user interfaces (GUIs) and management software, simplifying system configuration, monitoring, and troubleshooting for operators.

Precautions (Important Notes)

To ensure the longevity and proper functioning of the Honeywell CCU, the following precautions must be observed:

Power Supply Stability: Always use a clean, stable power source within the specified voltage range. The use of an uninterruptible power supply (UPS) is highly recommended to protect against power outages and surges.
Environmental Control: Install the unit in an area that adheres strictly to the specified operating temperature and humidity limits. Avoid locations prone to excessive vibration, dust, or corrosive gases.
Grounding: Proper grounding is essential to mitigate electromagnetic interference (EMI) and ensure safety. All grounding instructions in the installation manual must be followed precisely.
Software and Firmware Management: Only install validated and authorized firmware updates from Honeywell. Regular backups of the configuration database must be performed before any major software change.
Professional Installation: Installation, wiring, and commissioning must be performed by certified and trained technical personnel familiar with industrial control systems and relevant electrical codes.
Network Security: Implement strong network segmentation and firewall rules to isolate the control network from the general IT network.

Product Applications

The versatility of the Honeywell CCU makes it suitable for a broad range of applications:

Commercial Real Estate: Centralized control of building automation systems (BAS) for office towers, shopping malls, and hotels, optimizing HVAC schedules and energy usage.
Critical Infrastructure: Managing complex environmental and power systems in data centers, telecommunications facilities, and utility plants, where uptime is paramount.
Industrial Automation: Serving as a primary controller in manufacturing plants and process control environments for machine monitoring, safety interlocks, and quality assurance processes.
Healthcare and Education: Integrating and managing systems for hospitals and university campuses, including air quality control, access control, and energy metering across multiple buildings.
Transportation: Monitoring and control of station services, tunnel ventilation, and security systems in airports, subway systems, and railway operations.

VK4105C1009 HONEYWELL

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
