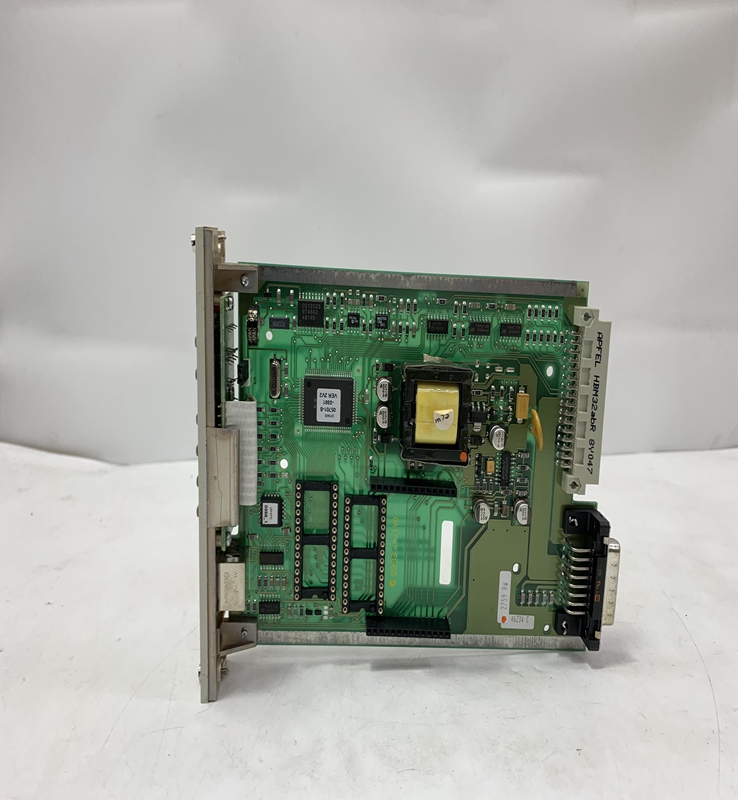

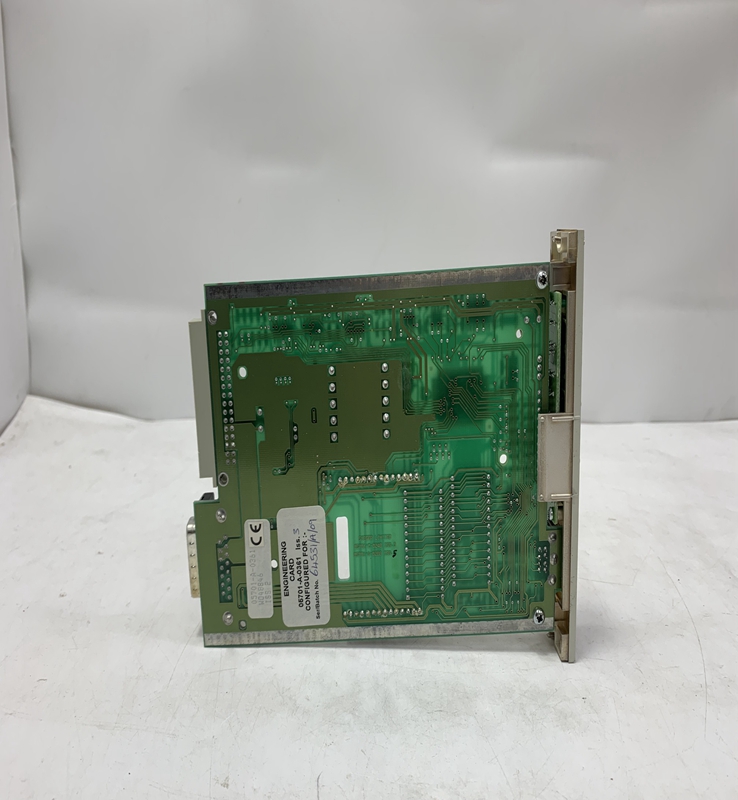

PVL6436A HONEYWELL

HONEYWELL PVL6436A Servo Controller

Brand：HONEYWELL Model number：PVL6436A

Country of origin: United States Product weight：0.4kg

HS code：8517623990

Product Details：

Product Dimensions：

A Honeywell-class Servo Controller is a highly sophisticated electronic device designed for precise control of electric motors, specifically in applications requiring accurate speed, torque, and position management. These controllers are the core component of a motion control system, receiving commands from a master controller (like a PLC or DCS) and executing precise commands to the motor.

Functionality: The controller uses a high-speed microprocessor to execute a complex control loop. It receives feedback from motor encoders (or other feedback devices) to continuously monitor the motor's actual position, velocity, and torque. It then compares these values to the commanded setpoints and adjusts the motor's power output in real-time to eliminate any error. This closed-loop control ensures extremely accurate and repeatable motion.
Types: Honeywell's servo control capabilities are typically integrated into larger systems. For instance, in an industrial setting, a servo drive might be part of an Experion Process Knowledge System. In aerospace, it might be a module within a flight control computer. A conceptual standalone product would likely be categorized by its power rating (e.g., low, medium, or high power) and the types of motors it can control (e.g., AC synchronous motors, brushless DC motors).
Key Features:

High-Speed Processing: Fast processing and loop update rates are essential for responsive and accurate motion control.
Multi-Axis Synchronization: The ability to coordinate the movement of multiple motors for complex, synchronized motion profiles.
Advanced Control Algorithms: Includes algorithms for jerk control, feed-forward compensation, and friction compensation to optimize performance.
Integrated Diagnostics: Extensive self-diagnostics and fault reporting capabilities to identify and troubleshoot issues quickly.
Robust Communication: Support for high-speed industrial networks (e.g., EtherCAT, PROFINET) for seamless integration with other automation equipment.
Built-in Safety Functions: Features like Safe Torque Off (STO) to meet international machinery safety standards.

Product Parameters

As a conceptual product, the parameters would align with top-tier industrial controllers.

Input Power: Typically a three-phase AC input (e.g., 200-240V or 380-480V) for the power stage and a separate low-voltage DC input for the control electronics.
Output Power: The continuous and peak power ratings delivered to the motor (e.g., from a few hundred watts to tens of kilowatts).
Feedback Support: Compatibility with various feedback devices like incremental encoders, absolute encoders, resolvers, and Hall sensors.
Control Modes: Support for various control modes including position, velocity, and torque control.
Communication Protocols: EtherCAT, PROFINET, and Modbus TCP for data exchange.
Tuning: Automatic tuning and manual tuning options for optimizing performance with different motors and loads.
Operating Environment: Industrial-grade components to withstand wide temperature ranges, high humidity, and vibration.

Product Advantages

Precision and Accuracy: Honeywell's legacy in control systems ensures exceptionally precise and repeatable motion, crucial for applications like robotics and machining.
Reliability: Engineered with the same high standards as their aerospace and industrial products, offering robust performance and high uptime.
Integrated Safety: The inclusion of certified safety functions reduces the complexity and cost of meeting machine safety regulations.
Ease of Integration: Seamless communication with standard industrial networks allows for quick and easy integration into existing automation systems.
Performance Optimization: Advanced tuning and control algorithms enable users to get the maximum performance out of their motors and machines.
Global Support: As a global leader in technology, Honeywell provides extensive documentation, training, and technical support.

Important Considerations

Application-Specific Selection: The choice of a servo controller depends heavily on the specific application's requirements for speed, torque, accuracy, and power. Over-specifying can be costly, while under-specifying can lead to poor performance.
Motor and Feedback Compatibility: Ensure the controller is fully compatible with the chosen servo motor and its feedback device.
Power and Wiring: Proper power supply sizing, grounding, and wiring are essential for stable operation and to prevent electrical noise.
Software and Tuning: Effective use of a high-performance servo controller requires a good understanding of its configuration software and the principles of motion control tuning.
Maintenance: While reliable, regular checks on connections and cooling systems are necessary to ensure longevity.

Product Applications

A Honeywell-class servo controller would be used in a wide range of high-performance applications:

Robotics: For precise and rapid movement of robot arms in manufacturing and assembly.
CNC Machining: Controlling the axes of machine tools for accurate cutting, milling, and grinding.
Packaging Machinery: For high-speed and synchronized motion in labeling, filling, and sealing equipment.
Printing and Converting: Controlling rollers and web tension in printing presses and material converting lines.
Semiconductor Manufacturing: For ultra-precise positioning in wafer handling and inspection systems.
Aerospace: Within flight control systems and actuators for adjusting surfaces like flaps and rudders.
