MC-TPIX12 HONEYWELL

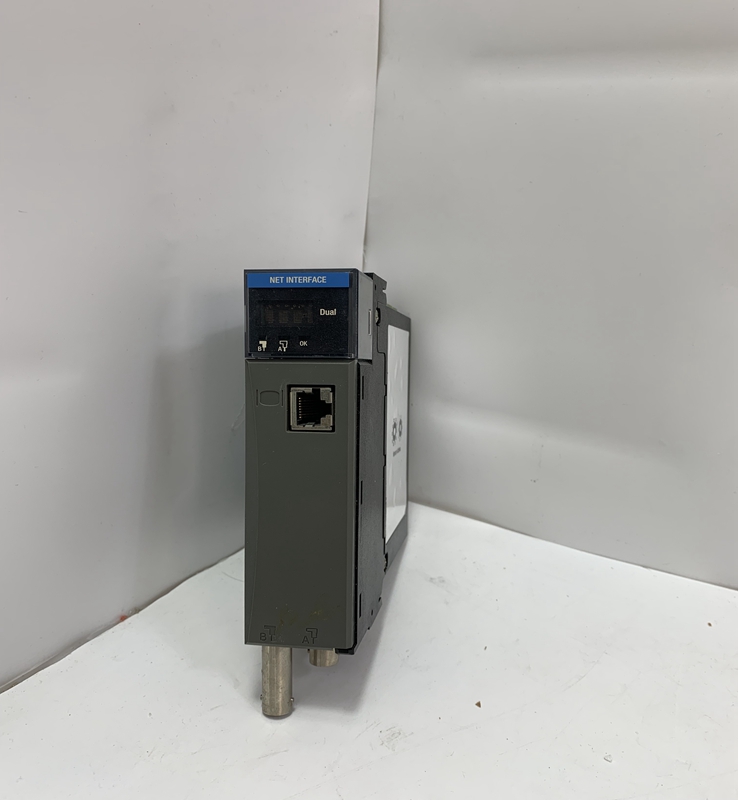

HONEYWELL MC-TPIX12 Communication Interface

Brand：HONEYWELL Model number：MC-TPIX12

Country of origin: United States Product weight：0.4kg

HS code：8517623990

Product Details：

Product Dimensions：

Honeywell’s communication interfaces come in various forms, tailored for different applications. A key example is the Communication Interface Unit (CIU), a standalone processing unit designed to centralize data from multiple field instruments, such as tank gauging systems.

Functionality: A communication interface translates data between different communication protocols (e.g., Modbus, OPC UA, serial protocols) and media types (Ethernet, serial). This allows a central control system (like a distributed control system or SCADA) to communicate with a wide range of devices that may use different languages.
Types: Honeywell provides several types of communication interfaces, including:

Network Gateways: These act as a bridge between different networks, such as converting a fieldbus protocol to an Ethernet-based protocol.
Serial to Ethernet Converters: These enable older serial-based devices (RS-232, RS-485) to be integrated into modern Ethernet networks.
Specialized Interface Units: Products like the CIU are specifically designed for a particular application, such as tank farm inventory management, centralizing data from hundreds of sensors and gauges.
Building Automation Interfaces: These modules connect security panels, HVAC systems, and other building management devices to a central control system.

Product Parameters

The technical parameters of a communication interface are specific to its function and model. Here are some common ones:

Supported Protocols: The list of communication protocols the device can translate or support (e.g., Modbus TCP/IP, OPC UA, HART, Profibus, DNP3, and proprietary protocols like Enraf).
Physical Interfaces: The types of physical ports available, such as Ethernet ports (RJ45), serial ports (RS-232, RS-485), or USB ports.
I/O Capacity: For units like the CIU, this includes the number of field instruments it can interface with (e.g., up to 64 tank gauges) and the number of analog or digital inputs/outputs it can accept.
Processing and Memory: The internal CPU, RAM, and non-volatile memory for data logging and program execution.
Power Supply: The required voltage and current for operation (e.g., 24 VDC or 100-240 VAC).
Operating Environment: The specified temperature, humidity, and IP rating for the installation location.
Certifications: Compliance with international safety and performance standards (e.g., CE, UL, NMI) for use in various industries.

Product Advantages

Seamless Integration: Honeywell's communication interfaces allow for the easy integration of disparate devices and systems into a unified control architecture, reducing complexity and engineering time.
Data Centralization: They centralize data from multiple instruments, providing a single, reliable point for accessing critical information for operations, inventory, and reporting.
Enhanced Efficiency: By providing real-time data to control systems and operators, they improve decision-making, optimize processes, and enhance overall efficiency.
Reliability and Redundancy: Units often feature redundant power supplies and communication links to ensure high availability and prevent data loss, which is critical for safety and operational continuity.
Scalability: Their modular design allows for easy expansion as the system grows, supporting a wide range of applications from small installations to large-scale operations.
Cybersecurity: Modern interfaces are built with security measures to prevent unauthorized access and protect sensitive data.

Important Considerations

Protocol Matching: Ensure the communication interface supports all the necessary protocols for both the field devices and the host control system to guarantee compatibility.
Physical Installation: The chosen model must be suitable for the installation environment, meeting the required temperature, humidity, and dust/water protection ratings.
System Design: The interface unit should be sized correctly for the number of devices it needs to communicate with and the amount of data it needs to handle.
Software Configuration: Proper configuration of the module and its communication settings is crucial for correct operation. This often requires specialized software tools.
Documentation: Always consult the manufacturer's documentation for detailed wiring diagrams, setup instructions, and troubleshooting guides.

Product Applications

Honeywell communication interfaces are widely used across multiple industries:

Oil and Gas:

Tank Farms: The CIU is a prime example, collecting data from tank gauges for inventory management, custody transfer, and overfill prevention.
Pipelines: Interfacing with remote terminal units (RTUs) and flow computers.

Process Manufacturing:

Refineries and Chemical Plants: Connecting various field instruments (sensors, analyzers, smart devices) to a centralized distributed control system (DCS).

Building Automation:

Commercial Buildings: Integrating lighting controls, HVAC systems, security panels, and fire alarms with a central building management system.

Utilities:

Power Plants: Connecting protective relays, meters, and other equipment to SCADA for monitoring and control.

Marine:

Tanker Ships: Collecting and centralizing cargo and ballast tank data for safety and inventory management.

MC-TPIX12 HONEYWELL

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
