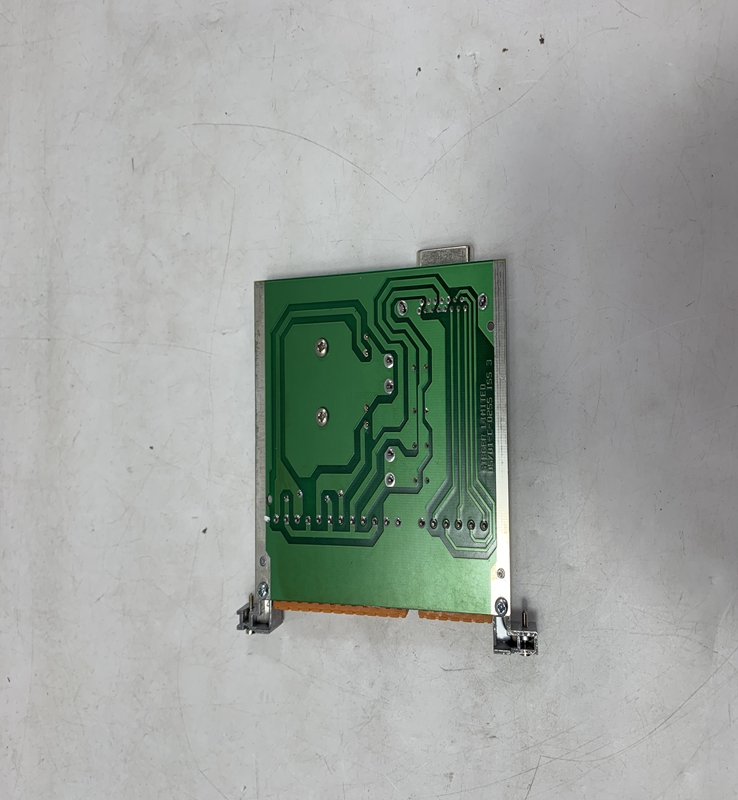

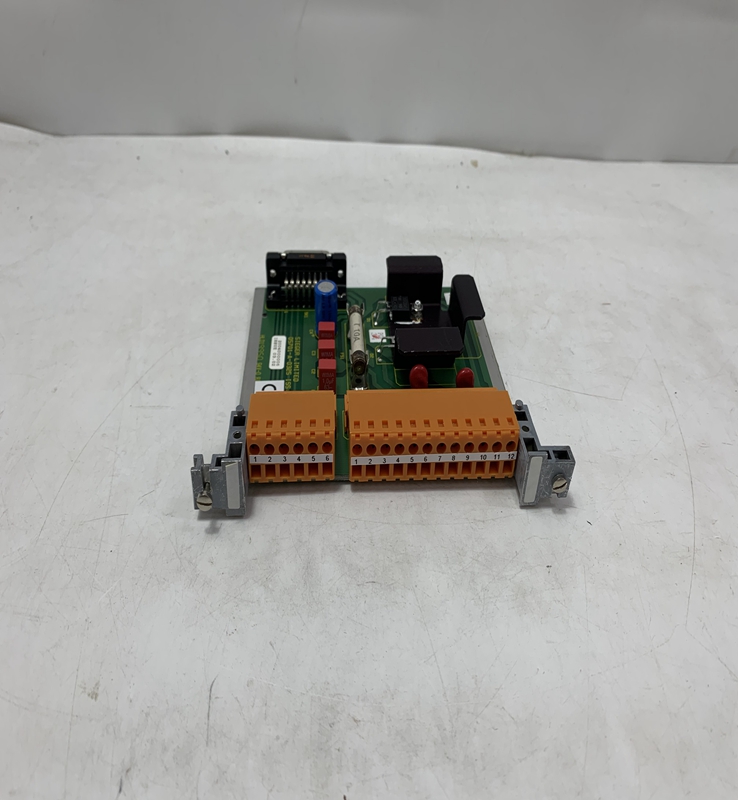

MC-TLPA02 51309204-175 HONEYWELL

HONEYWELL MC-TLPA02 51309204-175 analog module

Brand：HONEYWELL Model number：MC-TLPA02 51309204-175

Country of origin: United States Product weight：0.4kg

HS code：8517623990

Product Details：

Product Dimensions：

A Honeywell Analog Module is a sophisticated electronic component designed to accurately measure continuous process variables (Analog Input, AI) or to generate continuous control signals (Analog Output, AO).

Functionality:

Analog Input (AI) Modules: Convert analog field signals (e.g., 4-20mA, 0-10V, thermocouple/RTD voltage) into a high-resolution digital value that the controller can use for monitoring and control logic. They often include cold junction compensation for thermocouples and line resistance compensation for RTDs.
Analog Output (AO) Modules: Convert a digital setpoint from the controller into a precise analog signal (e.g., 4-20mA, 0-10V) to drive final control elements like variable speed drives, control valves, and pneumatic positioners.

Key Features:

High Resolution and Accuracy: Typically 16-bit resolution or higher for precise measurement and control.
Galvanic Isolation: Provides electrical separation between field devices and the control system, protecting sensitive electronics from noise and ground potential differences.
Signal Conditioning: Built-in filtering and signal linearization to ensure clean, accurate data.
Field Termination Assemblies (FTAs): Modules often connect to dedicated FTAs which simplify wiring, provide fusing, and offer hot-swappable capabilities.
Channel Density: Modules are available with various numbers of channels (e.g., 8, 16) to maximize cabinet space efficiency.
Diagnostic Capabilities: Advanced diagnostics including open circuit detection, over/under range detection, and module health monitoring.

Product Parameters

Parameters are model-specific but common characteristics include:

Signal Types Supported (AI): 4-20mA, 0-20mA, 1-5V, 0-10V, Thermocouple Types (J, K, T, E, etc.), RTD Types (Pt100, Cu10).
Signal Types Generated (AO): 4-20mA, 0-20mA, 0-10V.
Resolution: Typically 16-bit, sometimes higher.
Accuracy: Expressed as a percentage of span (e.g., $\pm 0.1\%$ of span).
Isolation Voltage: Maximum voltage isolation between channels, and between channel and ground (e.g., 1500 V RMS).
Update Rate: How quickly the module samples or updates the signal (e.g., 100 ms per channel).
Channel Density: Number of channels per module (e.g., 8-channel AI, 16-channel AO).
Operating Temperature: Industrial specifications, typically $-40^\circ\text{C}$ to $70^\circ\text{C}$ .
System Compatibility: Specific series compatibility (e.g., C300, Safety Manager, MasterLogic).
Certifications: SIL ratings (for safety systems), UL, CE, FM, ATEX.

Product Advantages

Superior Accuracy: High-resolution and advanced signal conditioning ensure highly accurate process data, leading to better control and optimization.
System Integration: Designed for seamless integration with Honeywell's DCS and control platforms, simplifying configuration and lifecycle management.
High Reliability: Engineered for continuous, long-term operation in demanding environments, minimizing unscheduled downtime.
Enhanced Diagnostics: Comprehensive self-diagnostics alert operators to sensor failures or wiring faults, speeding up maintenance and recovery.
Hot-Swappability: Many modules can be replaced while the system is running (hot-swappable) using Field Termination Assemblies, eliminating the need to shut down the process.
Flexibility: Support for multiple signal types (universal inputs) on some modules allows for simplified inventory and configuration.

Important Considerations

Signal Matching: Carefully select the module that precisely matches the range, type, and impedance of the field instrument (e.g., a 4-20mA transmitter requires a current input module).
System Architecture: Ensure the module is compatible with the specific control system chassis, processor, and redundancy scheme being used.
Grounding and Shielding: Proper grounding and shielding practices are essential for analog signals to maintain accuracy and reject electrical noise.
Calibration: AI modules require periodic calibration check and trim to maintain long-term accuracy, following Honeywell's procedures.
Ambient Conditions: While robust, modules must be installed in environments that adhere to their specified temperature and humidity ranges.
Safety Integrity Level (SIL): For safety-critical loops, ensure the selected analog module meets the required SIL certification (e.g., SIL 2 or SIL 3).

Product Applications

Honeywell Analog Modules are the backbone of measurement and control in continuous and batch processes across numerous industries:

Oil and Gas: Monitoring and controlling pressure, temperature, and flow in pipelines, refineries, and offshore platforms.
Chemical and Petrochemical: Regulating reaction temperatures, level control in vessels, and precise flow control of feedstocks.
Power Generation: Monitoring boiler pressure, steam temperature, feed water flow, and controlling turbine speed and governor valves.
Pharmaceutical and Biotech: Precise control of bioreactor temperature, $\text{pH}$ levels, and ultra-pure water flow.
Mining and Metals: Monitoring furnace temperatures and controlling cooling water flow.
Water and Wastewater: Monitoring water quality parameters and controlling chemical dosing pumps.
Pulp and Paper: Controlling pulp consistency, dryer temperatures, and chemical recovery processes.

CC-TAIX01 51308363-175 HONEYWELL

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
