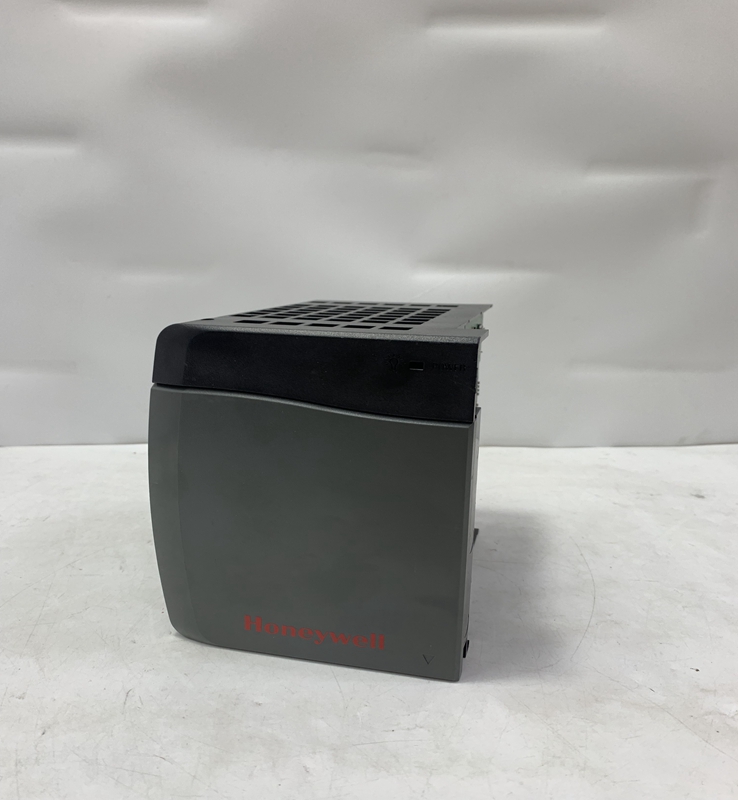

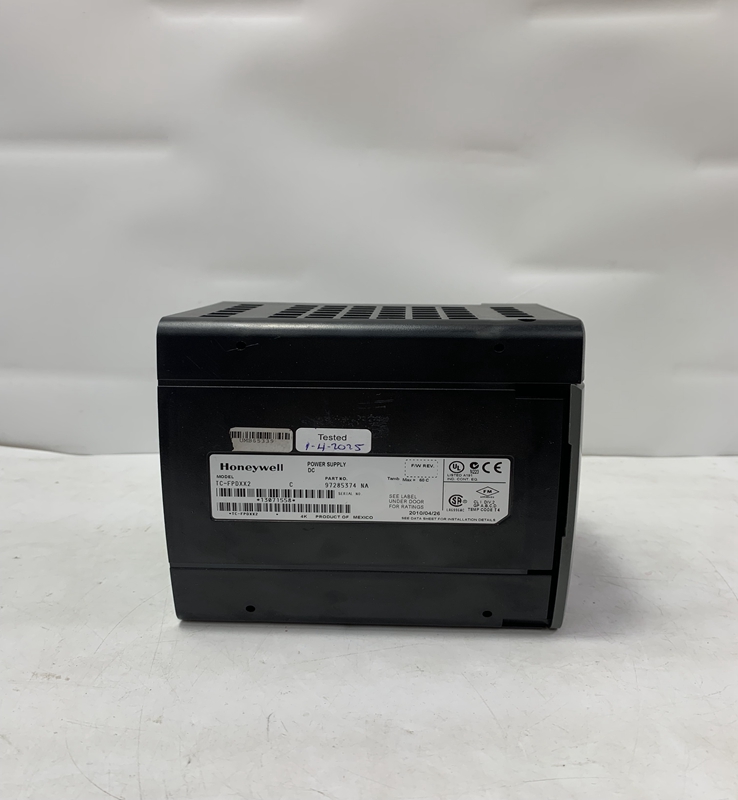

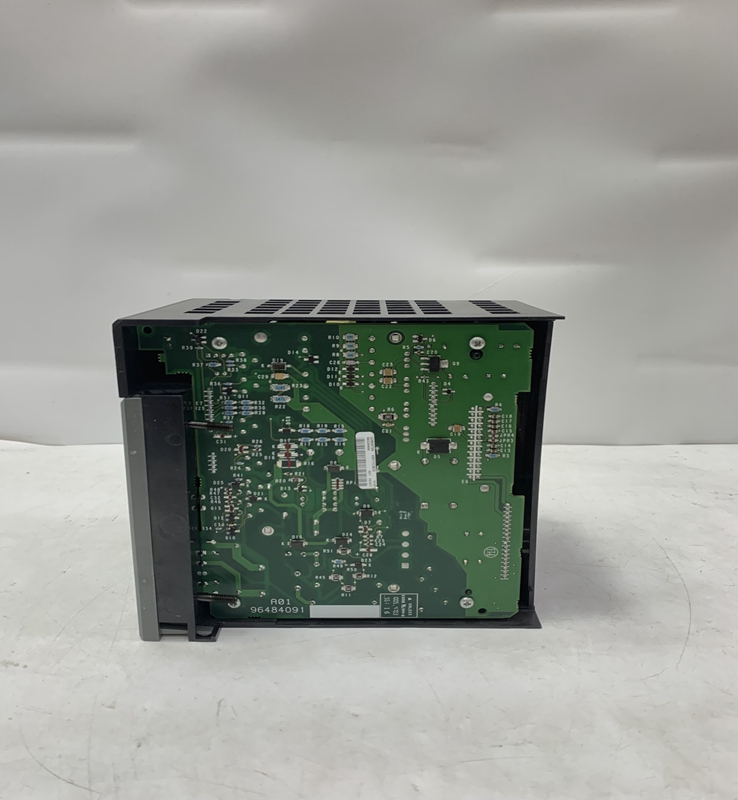

DC1030CR-101000-E HONEYWELL

Product Dimensions：

A Honeywell power board is an electronic circuit assembly designed to provide, regulate, and distribute power to other components within a larger system. These boards are typically not sold as isolated products but rather as parts of a complete system, such as a fire alarm control panel, an access control system, or a distributed control system (DCS). They often feature a robust design for industrial and commercial use and can include advanced features like battery backup management and fault monitoring.

• Functionality: A typical Honeywell power board converts a main AC power source (like a building's electrical line) into the required DC voltages (e.g., 24V DC, 12V DC) for a control system. Many also include a built-in battery charging circuit and a supervisory system to monitor the battery's health and the status of the main power supply. They can provide power to a variety of devices, including sensors, control modules, relays, and security devices.

• Types:

• Fire Life Safety Power Supplies: These are highly regulated and certified to meet fire codes (e.g., UL 864, EN54-4). They provide power to fire alarm notification appliances, smoke detectors, and other life safety devices, with a crucial function of maintaining power during an outage via a backup battery.

• Security System Power Supplies: Designed to power access control boards, cameras, and intrusion detection devices. They often come in unified enclosures that can house both the power board and the access control panel, simplifying installation.

• Industrial Control System Power Supplies: These modules are part of a larger architecture, like Honeywell's Experion PKS DCS. They provide highly reliable and often redundant power to the control processors, I/O modules, and communication units to ensure uninterrupted process control.

Product Parameters

The parameters of a Honeywell power board depend heavily on its application and model, but common specifications include:

• Input Voltage: Typically 115V AC or 230V AC, with a range of frequencies (50/60 Hz).

• Output Voltage: Common DC voltages like 12V, 24V, or a selectable range.

• Output Current: The maximum current the board can deliver, which can range from a few amps for smaller systems to 20 amps or more for industrial applications.

• Backup Battery Capacity: The maximum battery size (e.g., Ah rating) the board's charger can support for a specified standby duration.

• Protection: Features like overcurrent, overvoltage, short-circuit protection, and ground fault detection.

• Certifications: Compliance with safety and performance standards like UL, CE, and EN for specific applications (e.g., UL 864 for fire).

• Communication: Many modern power supplies include communication capabilities to report status and faults to a central control system.

• Physical Attributes: Dimensions, mounting style, and material (e.g., 19-gauge steel enclosure).

Product Advantages

• Reliability and Redundancy: Many Honeywell power boards are designed for mission-critical applications where uninterrupted power is essential. This often includes redundant configurations and robust components.

• Safety and Compliance: Honeywell products are engineered to meet stringent safety and regulatory standards, which is vital for fire and security systems. This ensures compliance with building codes and minimizes risk.

• Integration: These power boards are designed to integrate seamlessly with other Honeywell control systems, offering a cohesive, all-in-one solution that reduces complexity and installation time.

• Diagnostics: Advanced fault monitoring and reporting capabilities help in quickly identifying power-related issues, simplifying maintenance and improving system reliability.

• Simplified Installation: Unified power systems and removable backplates are common features that make installation and wiring faster and more efficient.

Important Considerations

• Application-Specific Selection: Due to the specialized nature of these products, it is crucial to select the exact model that is certified and designed for your specific application (e.g., a fire alarm power supply cannot be used for an industrial process control system).

• Load Calculation: Always ensure that the total current draw of all connected devices, including a safety margin, does not exceed the power board's rated output current.

• Battery Management: The standby time of the system is dependent on the battery size and the load. Always ensure the battery's capacity meets the specified requirements for the application.

• Documentation and Wiring: Adhere strictly to the manufacturer's installation manuals and wiring diagrams to ensure safe and compliant operation.

• Environmental Conditions: The power board should be installed in an environment that meets its temperature, humidity, and ventilation requirements.

Product Applications

• Fire and Life Safety Systems: Providing power and backup battery management for fire alarm control panels, smoke detectors, pull stations, and notification appliances in commercial buildings.

• Security and Access Control: Powering access control panels, card readers, electric locks, and alarm systems in offices, warehouses, and other secure facilities.

• Industrial Automation: Supplying reliable and often redundant DC power to PLCs, DCS controllers, and I/O modules in manufacturing plants, power generation facilities, and chemical processing plants.

• Utilities and Infrastructure: Providing power for critical monitoring and control equipment in smart energy grids, water treatment plants, and transportation systems.

• Commercial Buildings: Powering various building management systems, including HVAC controls, lighting systems, and other smart building technologies.

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！

Honeywell DC1030CR-101000-E

Honeywell XC5010C

Honeywell 51401437-301

Honeywell TC-LLMUX2

Honeywell FF-SB12E04K-S2

Honeywell FF-SB12R04K-S2

Honeywell TK-PRR021

Honeywell 10006/2/1

Honeywell DC1202-1-1-0-1-0-0-0

Honeywell 51305072-100

Colour：new                                   Warranty: 12 months

Lead Time：3-day working day      Price: Please contact us

Shipping Port: Xiamen, China         Payment:T/T

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service
