CC-TDOR01 HONEYWELL

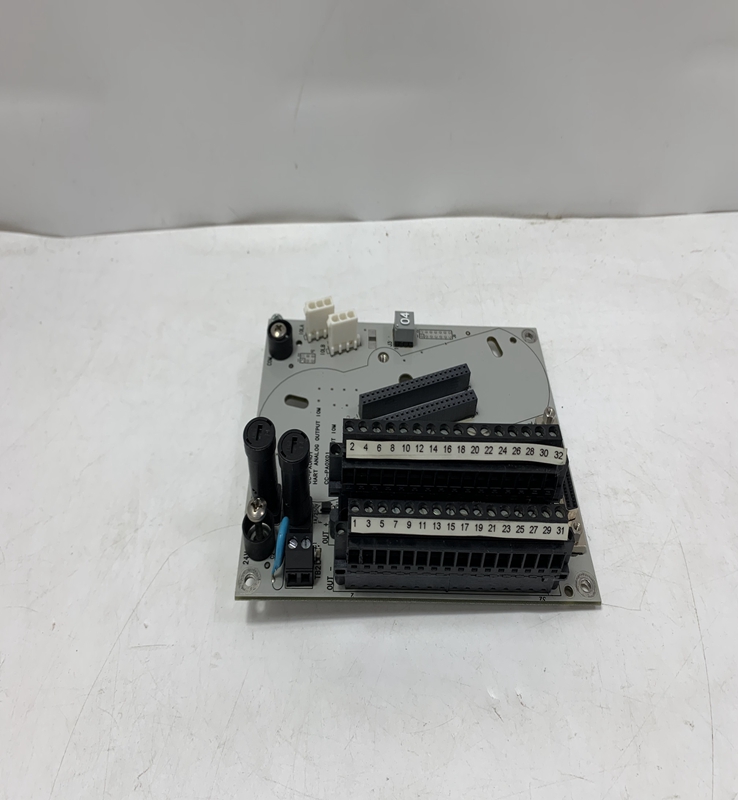

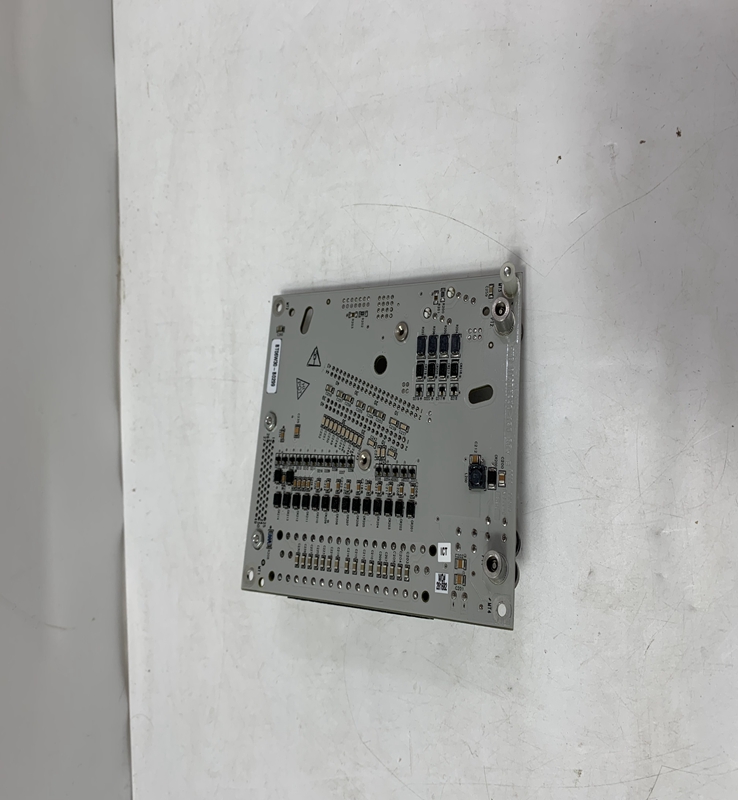

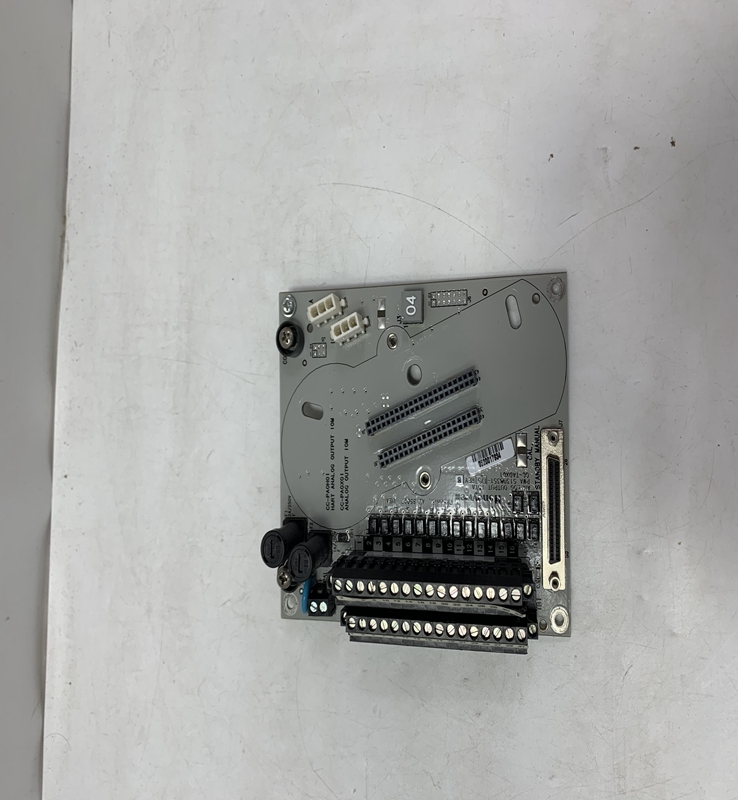

HONEYWELL CC-TDOR01 Basis unit

Brand：HONEYWELL Model number：CC-TDOR01

Country of origin: United States Product weight：0.4kg

HS code：8517623990

Product Details：

Product Dimensions：

A Honeywell Basis Unit is a core, foundational component designed for a specific measurement or control function within a larger system. These units are engineered for high precision, reliability, and durability, often employing advanced sensor technology to provide accurate data. They are typically a self-contained module that can be integrated into a larger system, providing the essential data or functionality required for the system's operation.

Specific Example: Honeywell Basis Weight Sensor Unit

This unit is a prime example of a "basis" unit because it provides the fundamental measurement for a process. It measures the mass per unit area of a product, which is a key quality control parameter.

Functionality: This sensor operates on the principle of beta absorption. It uses a small, safe radioactive source (like Promethium-147) that emits beta particles. As the material (e.g., a paper web) passes between the source and a receiver, some of the beta particles are absorbed. The amount of absorption is directly proportional to the material's weight per area. The unit measures this absorption and outputs a corresponding signal.

Product Parameters (for a Basis Weight Sensor)

Measurement Principle: Beta absorption.
Measurement Range: Depends on the specific model and source isotope, typically measured in grams per square meter (GSM).
Accuracy and Repeatability: High precision and consistency are key features, often down to a fraction of a percent.
Source Isotope: Common examples include Promethium-147 or Krypton-85.
Operating Environment: Designed for rugged industrial conditions, with tolerance for a wide range of temperatures, humidity, and barometric pressure changes.
Communication Interface: Typically integrates with a larger Quality Control System (QCS) via an industrial communication protocol.

Product Advantages

Superior Accuracy: Utilizes proven physical principles and advanced electronics to deliver highly accurate and repeatable measurements, which is critical for product quality.
Shutterless Design: Many modern versions feature a shutterless design, which minimizes moving parts, reduces maintenance, and enhances safety.
Insensitivity to Environmental Factors: The design often compensates for changes in temperature, humidity, and barometric pressure, ensuring consistent performance.
Robust and Safe: Engineered for rugged industrial use and maximum operator safety, with the radioactive source contained in a secure, shielded housing.
Fast Response: Provides a real-time measurement, allowing for immediate process adjustments.

Important Considerations

Regulatory Compliance: Due to the use of a radioactive source, these units must be handled, installed, and operated in strict compliance with all local and national regulations.
Calibration and Maintenance: Regular calibration and scheduled maintenance are crucial to ensure continued accuracy and safe operation.
Installation: Requires careful installation to maintain a precise and consistent gap between the source and receiver and to protect the unit from physical damage.
Troubleshooting: Troubleshooting often involves checking the output voltage from the receiver and ensuring the integrity of the air pressure system that controls flags and source mechanisms.

Product Applications

Sheet Manufacturing:

Paper Mills: Measuring the basis weight of paper as it is produced.
Plastic Film Extrusion: Ensuring uniform thickness and weight of plastic films.
Non-woven Textiles: Controlling the density and weight of materials like diapers or surgical gowns.

Quality Control:

Providing real-time data for closed-loop control systems to automatically adjust manufacturing processes.
Ensuring product consistency and reducing waste.

Research and Development:

Characterizing the properties of new materials in laboratory settings.

CC-TAIX11 HONEYWELL

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
