900C72R-0100-43 HONEYWELL

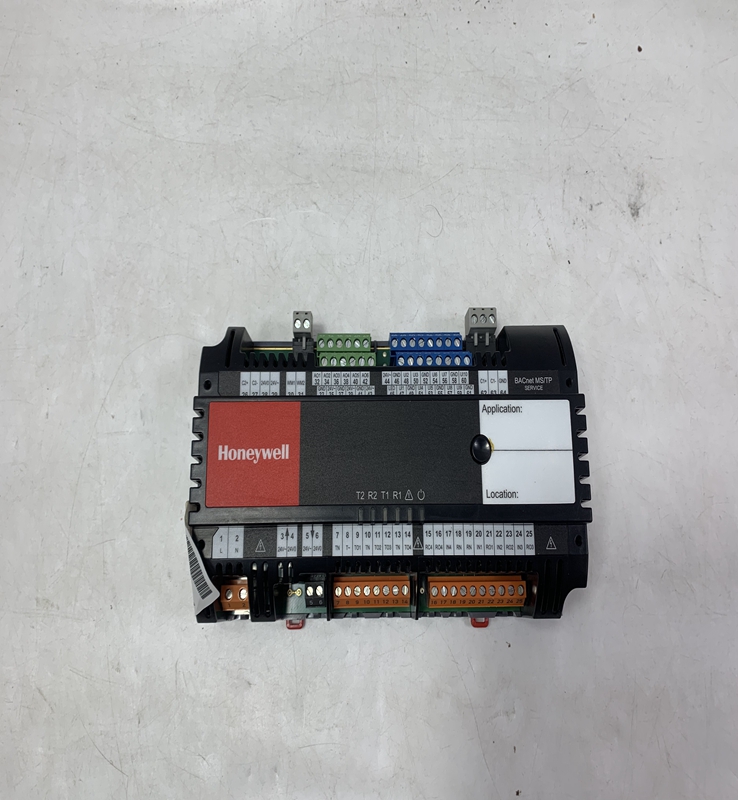

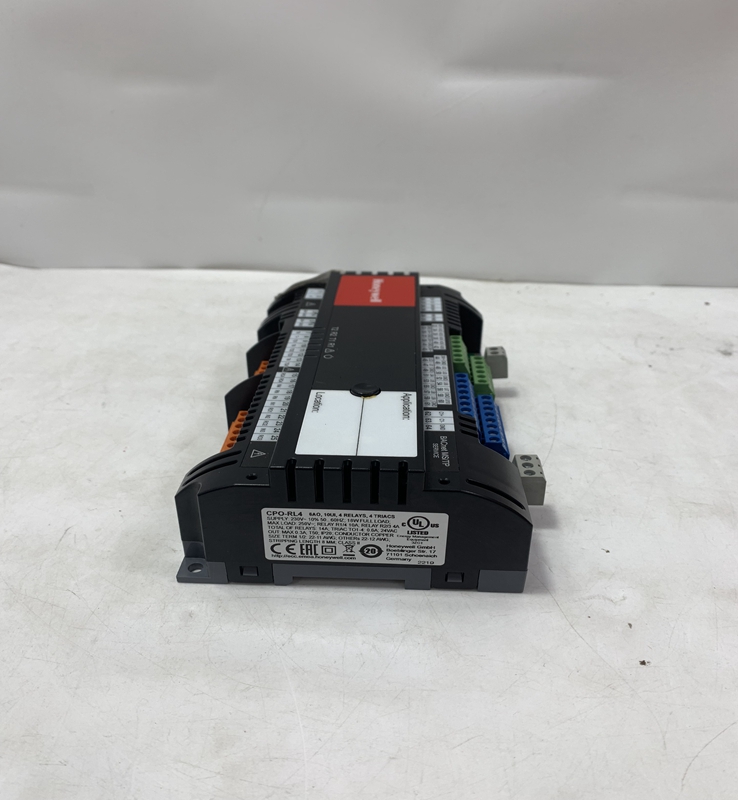

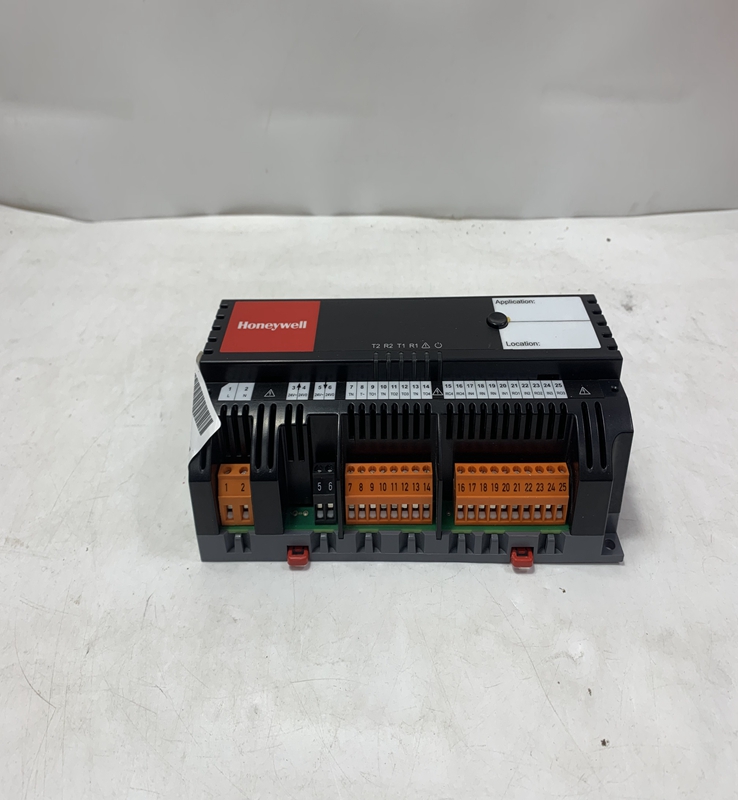

900C72R-0100-43 HONEYWELL I / O module

Brand：HONEYWELL Model number：900C72R-0100-43

Country of origin: United States Product weight：0.4kg

HS code：8517623990

Product Details：

Product Dimensions：

Honeywell Input/Output (I/O) Modules are essential components in control and automation systems, acting as the interface between the central controller (like a PLC or DCS) and field devices such as sensors, actuators, and switches. They translate physical signals (voltage, current, temperature) from the field into digital data for the controller and vice versa.

A key offering is the Universal Input/Output (UIO) Module, which provides maximum flexibility. These modules are often chassis-based or DIN-rail mountable and are designed for both local and remote deployment. They feature a compact design for reduced control cabinet footprint and support plug-and-play functionality for simplified installation and maintenance. The modules are equipped with multi-color LEDs for clear operational and diagnostic status indications. They connect to the controller via a communication bus (e.g., Panel Bus protocol or Ethernet/IP) and support automatic software updates, configuration, and commissioning from the controller.

Product Parameters (General/Example)

Given the variety of Honeywell I/O families (such as Series C, Rail-A, Rail-H, and various Building Automation modules), specific parameters vary greatly. Below are common examples:

I/O Types: Digital Input (DI), Digital Output (DO), Analog Input (AI), Analog Output (AO), and Universal I/O (UIO) which are software configurable as AI, DI, or Thermistor Input.
Channel Density: Modules can range from 2 to 32 channels per module, depending on the series and type (e.g., 16UIO, 8DOR).
Analog Input Signal Range: Typically configurable, for example, 0-10 Vdc or 0/4-20 mA.
Power Supply: Often 24 VDC. Some modules provide onboard power (e.g., 24 VDC at $75\text{ mA}$ ) for external sensors.
Operating Temperature Range: Standard modules are typically suited for commercial environments, while specialized modules (like Rail-H or Universal IO Module 2) are designed for extended ranges (e.g., $-40^\circ\text{C}$ to $+70^\circ\text{C}$ ).
Termination: Available with removable, color-coded terminal blocks in both screw terminal and push-in terminal variants for ease of service.
Communication Protocol: Supports various protocols depending on the system, including Panel Bus and industrial protocols like Ethernet/IP.

Product Advantages

Flexibility and Reduced Footprint: UIO Modules allow channels to be configured as different I/O types, minimizing unused I/O and reducing the overall size and cost of the control panel.
Simplified Maintenance: Plug-and-play functionality and removable, color-coded terminal blocks allow for easy module replacement without disturbing adjacent wiring or modules.
High Reliability and Robustness: High channel density with efficient heat dissipation and management, particularly in the Series C family. Some modules are designed for hazardous locations (HAZLOC certified) and extended temperature ranges.
Seamless Integration: The modules can often coexist with legacy I/O on the same bus, facilitating system upgrades without a complete overhaul.
Enhanced Safety and Diagnostics: Equipped with multi-color LEDs for all indications, and supports a software configurable safety position for DO and AO channels in the event of communication loss.

Precautions

Shock Hazard: Always observe precautions for electrical safety. Hazardous live voltages greater than $30\text{ Vrms}$ , $42.4\text{ Vpeak}$ , or $60\text{ VDC}$ may be accessible. Disconnect power before installation or service.
ESD Hazard: Electrostatic Discharge (ESD) precautions must be observed when handling modules, as they contain sensitive electronic devices.
Proper Configuration: I/O modules must be correctly configured using the designated engineering tools (e.g., ComfortPoint Open Studio or Niagara 4 Workbench) to ensure proper channel function and terminal assignment.
Wiring Standards: Use proper wiring practices and wire types, and adhere strictly to the module's wiring diagram and installation instructions to maintain safety and performance.

Product Applications

Honeywell I/O Modules are deployed across a vast range of industries and applications:

Building Automation and Management Systems (BMS): Used to connect HVAC equipment, lighting controls, fire and life safety sensors, and other building infrastructure to the main controllers.
Process Automation: Essential in industries like Oil & Gas, Chemicals, Life Sciences, and Mining, Minerals & Metals for interfacing with field instruments (transmitters, valves, motors) in Distributed Control Systems (DCS) and SCADA systems.
Industrial Automation: Employed in various manufacturing and control processes, often used as remote I/O to decentralize monitoring and control, bringing the I/O closer to the field devices for reduced wiring costs (CapEx) and operational expenses (OpEx).
Hazardous Environments: Specialized modules (e.g., Rail-H) are designed for installation directly in Zone 1/21 and Zone 2/22 classified areas.
