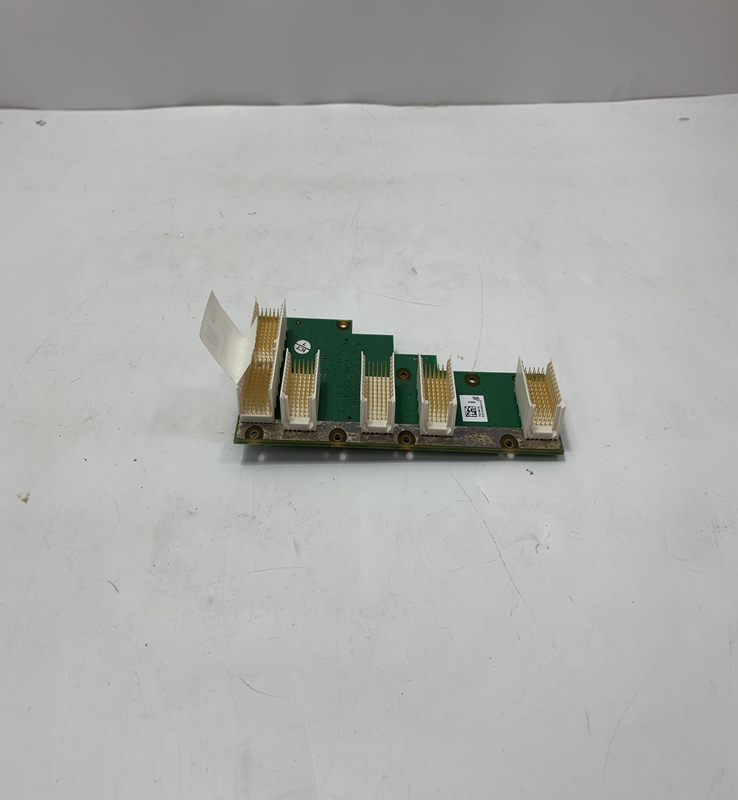

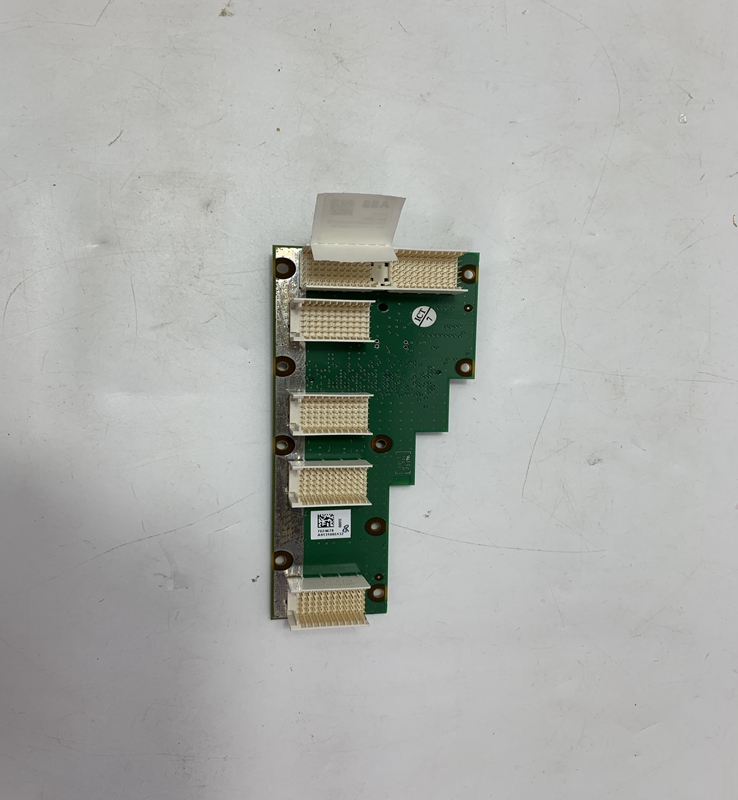

HONEYWELL 621-0009 Termination Unit

Brand：HONEYWELL Model number：621-0009

Country of origin: United States Product weight：0.4kg

HS code：8517623990

Product Details：

Product Dimensions：

A Honeywell Termination Unit (TU) is a passive or active electrical board designed to provide a secure and organized point for connecting field wiring from sensors and actuators to the I/O modules of a process control system. Rather than connecting hundreds of individual field wires directly to the I/O module pins, which is prone to errors and difficult to maintain, the TU provides labeled terminals for each wire. This modular approach streamlines installation, troubleshooting, and maintenance.

Functionality: TUs serve as the final connection point for signals from the field. They can include simple terminal blocks, or more advanced features like fuses, surge protection, and signal conditioning to ensure the integrity of the signals before they reach the control module. This simplifies wiring, provides a clear point of demarcation for troubleshooting, and enhances the system's overall reliability.
Types:

Analog Input/Output TUs: Designed for continuous signals (e.g., 4-20mA, 0-10V) and may include features like signal conditioning or cold junction compensation for thermocouples.
Digital Input/Output TUs: Designed for discrete on/off signals and often include fuses or current limiting resistors for protection.
Specialized TUs: Designed for specific applications, such as high-density I/O, intrinsically safe circuits, or communication interfaces.

Key Features:

Color-Coded Terminals: For easy identification and error-free wiring.
Fusing: Built-in fuses on each channel for overload protection.
LED Indicators: Provide a quick visual status of each channel.
Hot-Swap Capability: Designed to be easily replaced without shutting down the entire system in some advanced configurations.
Compact Design: Optimized for high-density wiring and efficient use of cabinet space.

Product Parameters

Parameters vary depending on the specific model and its intended use (e.g., for Experion PKS vs. legacy systems). Common parameters include:

Number of Channels: The number of I/O points the unit can terminate (e.g., 8, 16, 32 channels).
Signal Type: Specifies whether the unit is for digital or analog signals, and the supported signal range (e.g., 4-20mA, 24VDC, 120VAC).
Operating Voltage/Current: The maximum voltage and current the terminals and internal components can handle.
Isolation: Specifies whether the channels are galvanically isolated from each other and the system.
Operating Temperature: The environmental temperature range in which the unit can safely operate.
Mounting Type: Typically DIN-rail mounted within a control cabinet.
Dimensions: Physical size and weight of the unit.
Certifications: Compliance with relevant safety and performance standards (e.g., UL, CE, FM).

Product Advantages

Simplified Wiring: Provides a clean and structured method for connecting field devices, reducing installation time and potential for wiring errors.
Enhanced Reliability: Provides a secure and stable connection, minimizing signal noise and improving the integrity of the control system.
Improved Maintainability: Makes it easy to troubleshoot issues by providing a clear demarcation point between the field and the control system. Technicians can check field wiring at the TU without accessing the sensitive I/O modules.
System Protection: Includes features like fuses and surge protection to safeguard the expensive control system I/O modules from electrical faults in the field.
Modularity and Scalability: The modular design allows for easy expansion or replacement of I/O channels without major system redesign.

Important Considerations

System Compatibility: A Termination Unit is designed to work with a specific family of Honeywell I/O modules. Ensure the TU model is compatible with the controller and I/O modules being used.
Wiring Practices: Adhere to Honeywell's specific wiring guidelines to ensure proper functionality and safety. This includes correct terminal assignments, wire sizing, and grounding.
Environmental Conditions: While TUs are robust, they must be installed in a control cabinet that meets the specified environmental conditions, including temperature, humidity, and protection from corrosive elements.
Documentation: Always refer to the specific Honeywell product datasheet and installation manual for detailed wiring diagrams, terminal layouts, and configuration information.
Maintenance: Regularly inspect terminals for secure connections and check fuses as part of a routine maintenance schedule.

Product Applications

Honeywell Termination Units are widely used in any industry that relies on Honeywell's process control systems to manage a large number of field instruments and devices.

Oil and Gas:

Controlling valves, pumps, and compressors in refineries, pipelines, and offshore platforms.

Chemical and Petrochemical:

Managing process variables like temperature, pressure, and flow in reactors and distillation columns.

Pharmaceuticals:

Automating batch processes, clean-in-place (CIP) systems, and sterilization equipment.

Power Generation:

Monitoring and controlling turbines, boilers, and balance-of-plant equipment.

Pulp and Paper:

Controlling machinery for pulp production, paper making, and finishing processes.

Mining and Metals:

Automating conveyors, crushers, and material handling systems.
