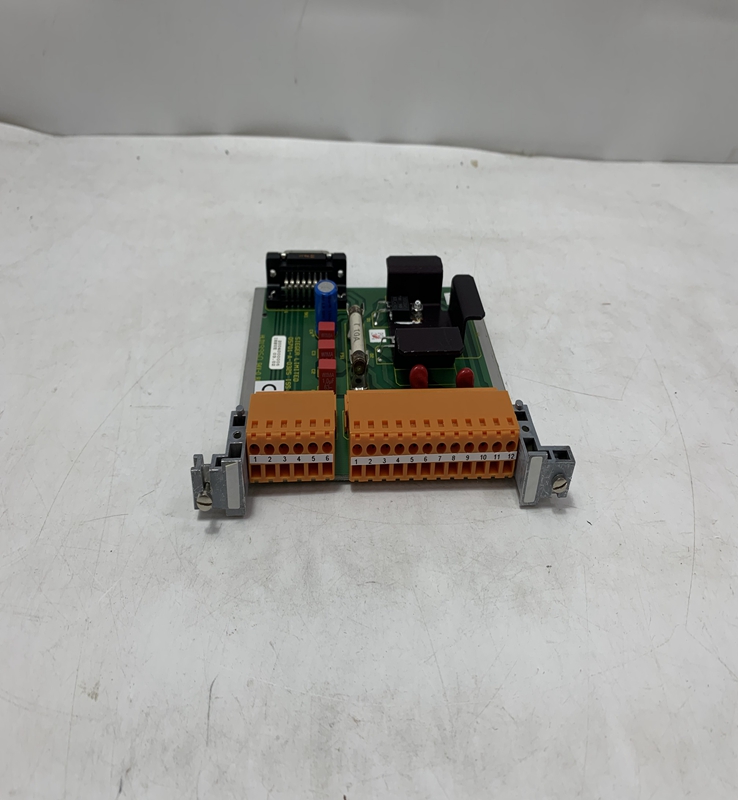

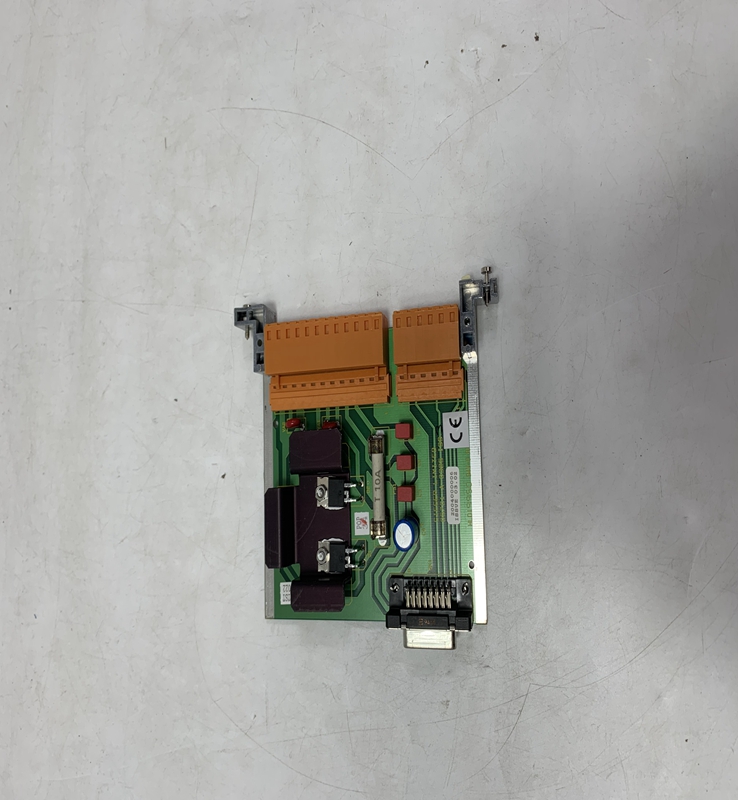

51453540-501 HONEYWELL

51453540-501 HONEYWELL Processor module

Brand：HONEYWELL Model number：51453540-501

Country of origin: United States Product weight：0.4kg

HS code：8517623990

Product Details：

Product Dimensions：

The Honeywell Processor Module is a high-performance, specialized computing unit designed for demanding industrial environments. It typically plugs into a rack or chassis along with various Input/Output (I/O) modules and communication modules. Its primary function is to host the user's control program, perform logic and calculations, manage data flow, and ensure real-time operation of the connected plant or process. These modules often support redundancy, meaning two modules can operate in parallel (Hot Standby) to ensure a seamless switchover and continuous operation in the event of a failure, thereby guaranteeing high availability.

Product Specifications

Key specifications for a Honeywell Control Processor Module (such as the 900CP1-0200 or similar models) often include:

Processor: A high-speed, multi-core industrial-grade CPU, such as a Dual Core ARM Cortex-A9, running at a high clock speed (e.g., 667 MHz).
Memory: Ample User Programming Memory (Flash) and Dynamic Memory (RAM) for complex control strategies and data logging (e.g., 512 MB to 2 GB).
Capacity: High capacity for managing a large number of I/O points (e.g., up to 4608 Digital Channels and 2304 Analog Channels) and supporting multiple I/O racks.
Control Performance: Fast command execution time (e.g., 85 $\mu \text{s}$ per 1000 commands) and adjustable I/O scan times to ensure tight process control.
Redundancy: Supports hot standby redundancy for fault tolerance and high reliability.
Communication: Multiple high-speed Ethernet ports for network connectivity, supporting industrial protocols like Panel Bus, Modbus, or BACnet.
Real-Time Clock: Built-in real-time clock with long data retention (e.g., 20+ years of nonvolatile memory data life).

Product Advantages

The Honeywell Processor Module offers several significant advantages for industrial operations:

High Reliability and Availability: Through robust design, high-quality construction, and support for hot standby redundancy, the module minimizes downtime, ensuring continuous, safe operation.
Superior Performance: The powerful processor and optimized architecture allow for the execution of complex control strategies, faster data processing, and tighter control loops, leading to increased throughput and reduced waste.
Scalability: It is highly modular and scalable, supporting a wide range of I/O points and multiple expansion racks, which allows the control system to grow with the application's requirements.
Ease of Maintenance: Features like plug-and-play functionality for I/O, on-board diagnostics via LED indicators, and removable terminal blocks simplify installation, troubleshooting, and replacement without disturbing adjacent components.
Flexibility: Many associated I/O modules feature Universal Channel Technology, allowing channels to be software-configured as Analog Input, Analog Output, Digital Input, or Digital Output, which reduces spare parts inventory and simplifies design changes.

Precautions

To ensure optimal performance and longevity, users should observe the following precautions:

Operating Environment: Ensure the module is installed within the specified operating temperature and humidity limits. Industrial modules typically require installation in a protected enclosure.
Power Supply: Use a reliable, stable, and correctly sized power supply to prevent unexpected shutdowns or component damage. Verify that the power supply meets the module's voltage and current requirements.
Grounding and Shielding: Proper grounding and cable shielding are crucial to mitigate the effects of electrical noise (EMI/RFI), which can interfere with communication and control signals.
Firmware Updates: Always follow Honeywell's guidelines for firmware and software updates to maintain security and compatibility.
Handling: Handle the module with care, using anti-static procedures (like wearing a grounded wrist strap) to prevent damage from electrostatic discharge.

Product Applications

Honeywell Processor Modules are foundational to modern process and building automation, finding extensive use across various industries:

Oil and Gas/Hydrocarbons: Used for critical process control, monitoring pipelines, and managing refinery operations to ensure safety and efficiency.
Power and Water: Essential for optimizing power generation, grid stability, and managing water treatment and distribution processes.
Manufacturing: Deployed in automated production lines to manage machine control, logistics, and quality assurance.
Life Sciences and Pharmaceuticals: Provides precise control and data capture necessary for regulatory compliance and safeguarding sensitive manufacturing processes.
Building Management Systems (BMS): Used in large commercial buildings to integrate and manage HVAC, lighting, fire safety, and access control systems.
