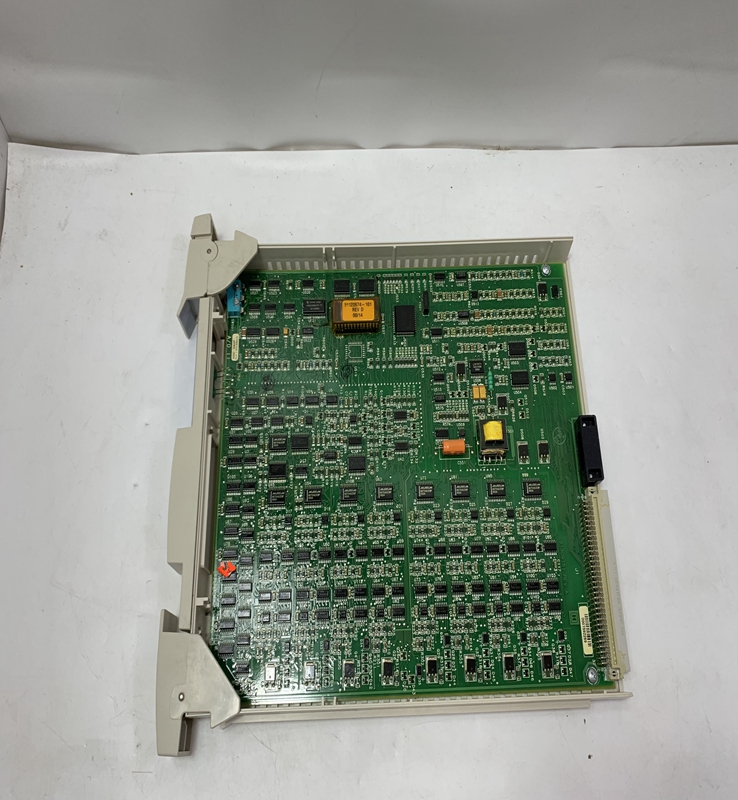

51303979-100H HONEYWELL

HONEYWELL 51303979-100H Digital Input Module

Brand：HONEYWELL Model number：51303979-100H

Country of origin: United States Product weight：0.4kg

HS code：8517623990

Product Details：

Product Dimensions：

A Honeywell digital input module is a rugged and reliable piece of hardware designed to interface with discrete field devices. It receives signals from things like limit switches, pushbuttons, proximity sensors, or contact closures. The module's primary job is to provide electrical isolation and signal conditioning, ensuring that the main controller's sensitive electronics are protected from voltage spikes, electrical noise, and ground loops from the field. Modules can be of various types, from standard digital inputs to specialized high-speed or fail-safe versions for critical applications. They are often part of a larger I/O family, sharing a common backplane or communication bus with controllers and other I/O modules.

Product Parameters

Specific parameters vary widely by model series (e.g., Series C, Rail-A I/O, or Universal I/O), but here are some typical specifications:

Number of Channels: The number of individual input points per module, commonly 8, 16, or 32 channels.
Input Voltage: The voltage level the module is designed to accept, typically 24VDC, but can also be 120VAC or 230VAC for different industrial applications.
Input Type: Can be dry contact (voltage-free), or wet contact (requiring an external voltage source), and may be sourcing or sinking.
Response Time: The time it takes for the module to detect a change in the input signal, usually in the range of milliseconds.
Isolation: The level of electrical isolation provided between the input channels and the backplane, measured in Volts AC (VAC) or Volts DC (VDC).
Operating Temperature: The ambient temperature range the module can safely operate within, often a wide industrial range like -40°C to 70°C.
Certifications: Compliance with international safety and quality standards like CE, UL, CSA, and others for use in hazardous locations.
Mounting: Designed for standard DIN rail or rack mounting within a control cabinet.

Product Advantages

Robust Reliability: Honeywell modules are built to withstand the demanding conditions of industrial environments, including wide temperature swings, vibration, and electrical noise. This ensures high system uptime.
Electrical Isolation: The isolation between input channels and the control system protects the core controller from electrical faults in the field, enhancing overall system safety and reliability.
Scalability: The modular design of Honeywell's I/O systems allows for easy and cost-effective expansion. You can add more modules as your application grows without replacing the entire control system.
Simplified Maintenance: Features like removable, color-coded terminal blocks and LED status indicators simplify wiring, troubleshooting, and module replacement. Some modules even support "hot-swapping" without interrupting the system.
Integration: Honeywell's digital input modules are designed for seamless integration with their control systems, simplifying configuration, commissioning, and diagnostic monitoring.
Flexibility: The availability of different module types (e.g., universal I/O) allows for flexible system design, reducing the number of spare parts needed and simplifying inventory management.

Important Considerations

Application Requirements: Always match the module's voltage and current ratings to the specific requirements of your field devices. Using the wrong module can damage both the module and the sensor.
Environmental Conditions: Ensure the operating environment in the control cabinet (temperature, humidity, vibration) is within the module's specified limits to guarantee longevity and performance.
Wiring Practices: Follow all national and local electrical codes. Proper grounding and cable shielding are crucial to prevent signal interference and ensure reliable operation.
Compatibility: Verify that the chosen digital input module is compatible with your specific controller model and the communication protocol being used.
Power Disconnection: Always disconnect power before installing or servicing the module to prevent electrical shock or damage to the equipment.

Product Applications

Honeywell digital input modules are widely used across various industries for monitoring and control:

Process Control: Monitoring the status of pumps, valves, and switches in industries like oil and gas, refining, and chemical processing.
Manufacturing: Detecting the position of parts on an assembly line, monitoring the state of safety gates, and receiving signals from emergency stop buttons.
Building Automation: Monitoring occupancy sensors, fire alarm system signals, and the status of doors or windows.
Water and Wastewater Treatment: Monitoring the levels of tanks and the open/closed status of valves and pumps.
Energy Management: Detecting circuit breaker status and monitoring switch positions in power plants and substations.

51304516-200 HONEYWELL

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
