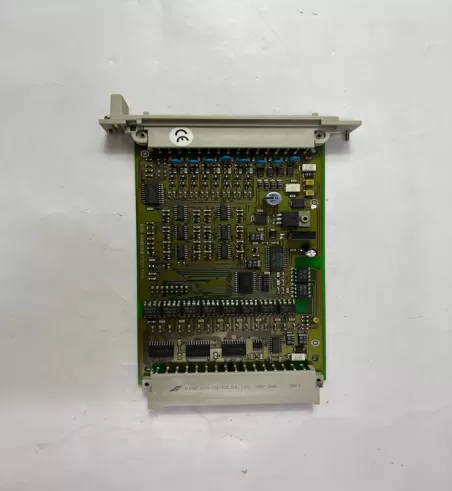

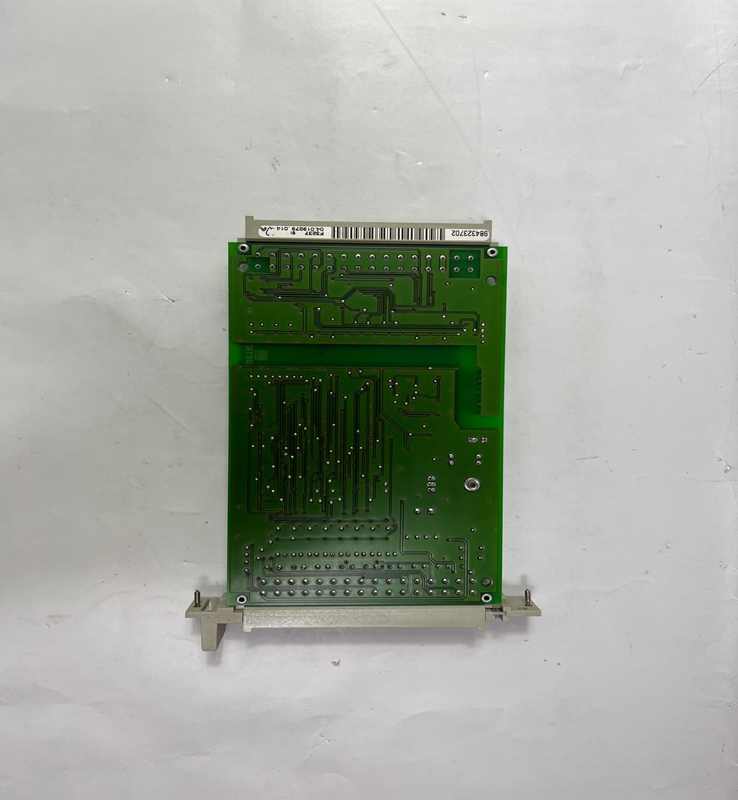

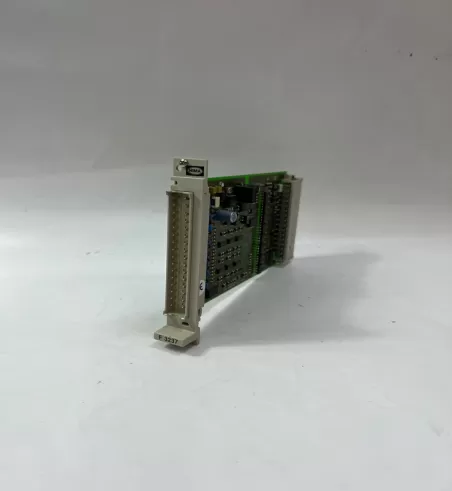

HIMA F3237 HIMA Channel Safety-Related Input Module

HIMA F3237 HIMA Channel Safety-Related Input Module

Brand：HIMA                                 Model number：F3237

Country of origin: Germany            Product weight：0.55kg

HS code：8517623990

Product Dimensions：

The module is automatically tested completely during operation. The main

test routines are:

- Switch on and switch off cability

- Crosstalk of the input circuits by walking 0 test

- Function of the input filters

- Correct function of the module

- Short circuit and wire break of the sensor line

Function of LEDs are not tested.

Appertaining softw. building block: HB-RTE-. (for current version refer to

the description of the operating system).

Switching time approx. 10 ms

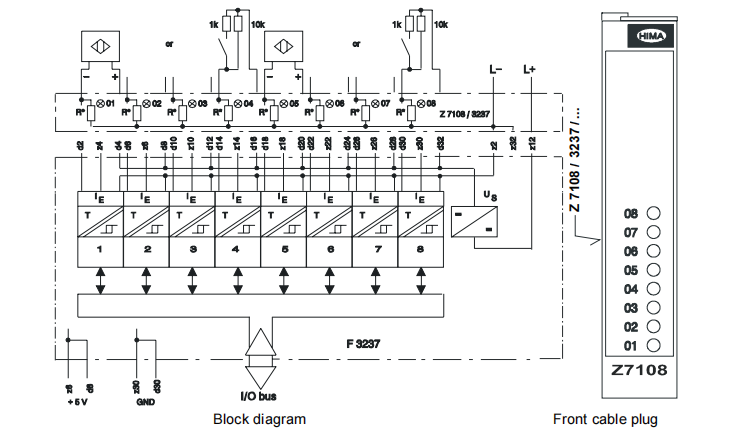

Operating points IE

 0 signal 0.35 ≤ IE ≤ 1.2 mA

 1 signal 2.1 ≤ IE ≤ 6.0 mA

 wire break ≤ 0.28 mA

 short circuit ≥ 6.5 mA

Line impedance ≤ 50 Ohm (acc. to DIN 19234)

Line length ≤ 1000 m (∅ = 0.5 mm2)

Supply voltage US 8.2 V

Shunt R* 681 Ohm; 1 %; 0.25 W

(R17 ... R24) part no. 00 0751681

Space requirement 4 TE

Operating data 5 V =: 90 mA; 24 V =: 170 mA
