SRPE100A100 GE Fanuc

SRPE100A100 GE Fanuc Input module

Brand：General Electric Model number：SRPE100A100

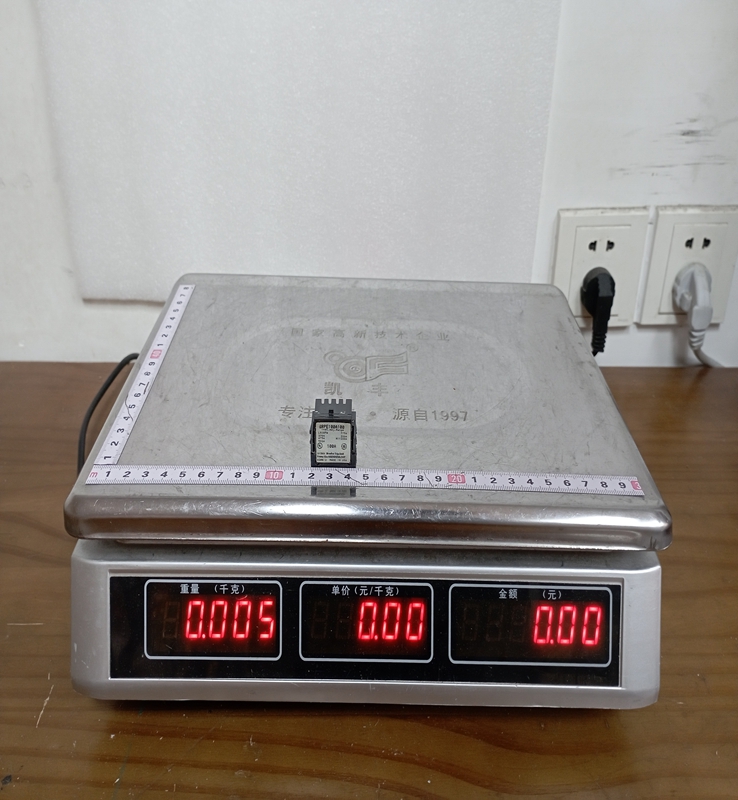

Country of origin: U.S. Product weight：0.55kg

HS code：8517623990

Product Details：

Product Dimensions：

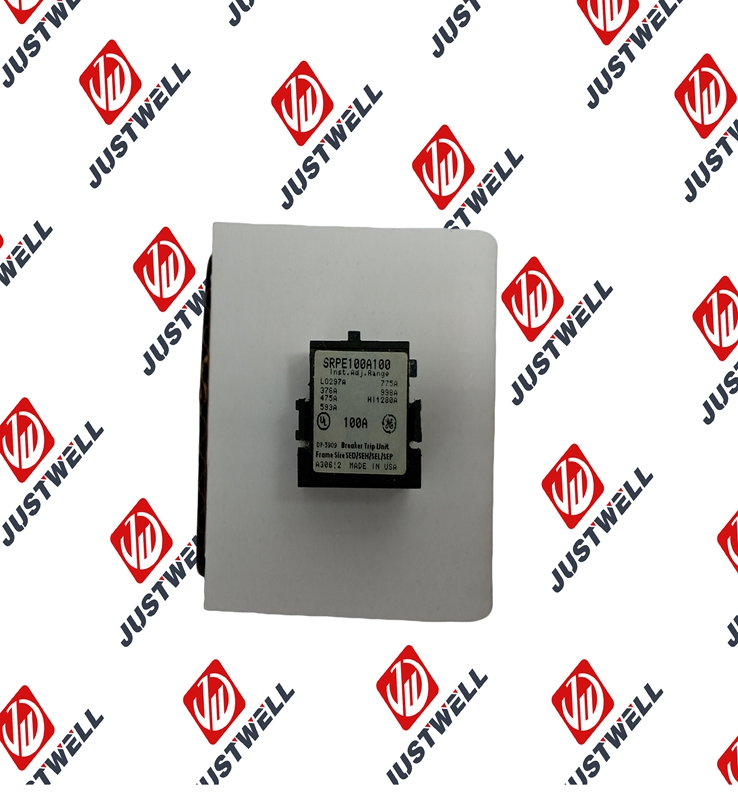

The SRPE100A100 rating plug is designed as a core modular accessory for the GE Spectra RMS product line, specifically for the SE150 frame series. Working in tandem with MicroVersaTrip Plus and MicroVersaTrip PM solid-state electronic trip units, the plug sets the maximum continuous ampere rating of the circuit breaker to 100 Amps. It enables fast field configuration and recalibration of electrical protection settings without requiring replacement of the internal current sensors or the complete breaker mechanism.

Product Parameters

Manufacturer: General Electric (ABB)
Product Model: SRPE100A100
Product Type: Interchangeable Electronic Rating Plug
Product Family: Spectra RMS Series
Rated Current (Plug Rating): 100 A
Sensor Rating: 100 A
Voltage Rating: 600 VAC
Pole Compatibility: 2-Pole and 3-Pole circuit breakers
Compatible Breaker Frames: SE150 Frame Series (SEDA, SEHA, SELA, SEPA)
Compatible Trip Units: MicroVersaTrip Plus, MicroVersaTrip PM, and Spectra RMS electronic trip programmers
Instantaneous Trip Range: 297 A to 1280 A adjustable
Standards & Certifications: UL Listed (File E11592), CSA Certified, IEC 947-2 compliant

Product Advantages

High Operational Flexibility: Allows easy rating adjustments and field retrofits within the SE150 frame simply by changing the plug rather than purchasing an entirely new circuit breaker.
Precise Electronic Protection: Delivers repeatable, accurate solid-state trip characteristics with true RMS sensing for high-accuracy overload and short-circuit protection.
Cost Efficiency: Significantly lowers inventory and maintenance costs across commercial and industrial facilities by utilizing common breaker frames with interchangeable modular rating plugs.
Quick Installation: Features a plug-in design that facilitates fast insertion and secure mechanical locking into the faceplate of the trip unit.

Important Considerations and Precautions

Always de-energize and lock out the circuit breaker before installing, replacing, or servicing the rating plug to prevent electric shock or equipment damage.
Ensure the rating plug's sensor rating exactly matches the internal current sensor (CT) rating of the host circuit breaker frame before power-up.
Verify that connected load conductors, busbars, and downstream distribution cables are properly sized to handle the 100 A capacity set by this plug according to local electrical codes (e.g., NEC).
The circuit breaker must never be operated or energized without a properly seated and compatible rating plug installed in the trip unit.
Check that the plug's connector pins are clean, undamaged, and securely locked in place to avoid intermittent tripping or false trip unit fault signals.

Product Applications

Low-Voltage Power Distribution: Switchboards, distribution panelboards, and motor control centers (MCCs) in commercial, institutional, and industrial facilities.
Industrial Feeder Protection: Protection of branch circuits, feeders, transformers, and electrical equipment operating up to 600 VAC.
System Upgrades and Retrofits: Re-rating existing electrical circuits in response to facility expansions, load rebalancing, or machine replacements.
OEM Machinery and Equipment: Integrated into electrical control enclosures for packaging machinery, pump stations, and manufacturing equipment requiring standardized Spectra RMS protection.

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
