lGP10-A22F1F Foxboro Processor module

Brand：Foxboro Model number：lGP10-A22F1F

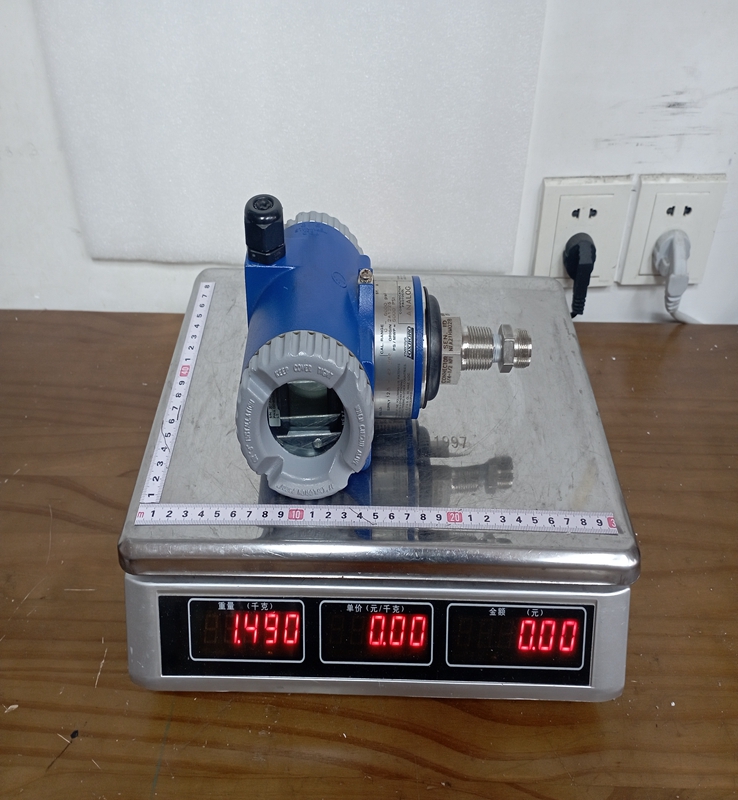

Country of origin: Germany Product weight：0.55kg

HS code：8517623990

Inquire Now

Product Details：

Product Dimensions：

The IGP10-A22F1F functions by applying process pressure to an internal silicon strain gauge microsensor. This pressure changes the electrical resistance of the sensor, which the transmitter electronics convert into a standard industrial analog output signal. The model code breaks down into specific material and construction configurations. The "A" denotes the analog 4-20 mA electronics version, while the "22" designates a high-grade 316L stainless steel process connection and sensor structure. The "F" represents the span limits of the sensor, and the subsequent characters denote a 1/2 NPT conduit connection alongside a standard direct-mount process connection without remote capillary seals.

Product Parameters

Measurement Type: Gauge Pressure
Electronics Version: Analog 4-20 mA DC output, two-wire loop powered
Span Limits (Code F): 14 to 42 MPa (2000 to 6000 psi / 140 to 420 bar)
Maximum Overrange Limit: 63 MPa (9000 psi / 630 bar)
Accuracy: ±0.20% of the calibrated span (including the combined effects of linearity, hysteresis, and repeatability)
Process Connection Material: 316L Stainless Steel
Sensor Material and Fill Fluid: 316L Stainless Steel diaphragm with Silicone Fill Fluid
Process Connection Size: 1/2 NPT external thread, 1/4 NPT internal thread
Conduit Connection: 1/2-14 NPT dual connections with an aluminum housing
Enclosure Rating: IEC IP66 and NEMA Type 4X weather-proof, dust-tight, and corrosion-resistant rating
Long-Term Stability: Less than ±0.05% of the Upper Range Limit (URL) per year over a 5-year period

Product Advantages

A key advantage of the IGP10-A22F1F is its Rugged Direct-Connect Design. Because it mounts directly to the process piping, it eliminates the need for expensive mounting brackets and complex impulse piping systems, reducing both installation footprints and hardware costs. The Silicon Strain Gauge Technology delivers excellent stability and repeatability, ensuring the transmitter maintains its calibration even during rapid pressure cycles or process fluctuations.

The All-316L Stainless Steel Wet End provides exceptional corrosion resistance against broad ranges of aggressive process fluids. Additionally, the unit features Dual-Compartment Housing, meaning the field terminal connections are isolated from the sensitive electronics module, protecting the core circuitry from moisture and ambient dust during field wiring and maintenance.

Important Considerations and Precautions

When installing the IGP10-A22F1F, it is essential to check that the Process Fluid Temperature does not exceed the silicone fill fluid limits of -46°C to 121°C (-50°F to 250°F) to prevent sensor damage or signal drift. Technicians must strictly observe the Maximum Overrange Pressure limit of 9000 psi; exceeding this threshold will permanently deform the internal silicon diaphragm and destroy the transmitter's accuracy.

Because this is an analog-only model (Code A), it does not feature digital HART communication, meaning all zero and span calibrations must be performed physically using the onboard potentiometers rather than a remote handheld communicator. Always ensure that the Conduit Entry Points are completely sealed with appropriate thread compound or a certified cable gland, as moisture ingress through unsealed threads is the leading cause of field terminal corrosion and loop shorts.

Product Applications

The high-pressure rating (up to 6000 psi) of the Code F sensor makes the IGP10-A22F1F well-suited for high-energy fluid and gas delivery networks.

Oil and Gas Production: Monitoring wellhead pressures, hydraulic control lines, and high-pressure manifold lines.
Chemical Refining: Managing the high-pressure injection lines for catalysts or feedstock fluids in chemical synthesis reactors.
Power Generation: Measuring main steam line pressures and high-pressure boiler feed pump discharge loops.
Water Distribution: Monitoring high-lift pump discharge manifolds and water hammer prevention systems in municipal utility plants.
Hydraulic Control Systems: Tracking system pressures in heavy-duty industrial hydraulic presses and centralized lubrication networks.

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
