IC755CSWO7CDACA-FY EMERSON Input module

Brand：Emerson Model number：IC755CSWO7CDACA-FY

Country of origin: United States Product weight：0.55kg

HS code：8517623990

Product Details：

Product Dimensions：

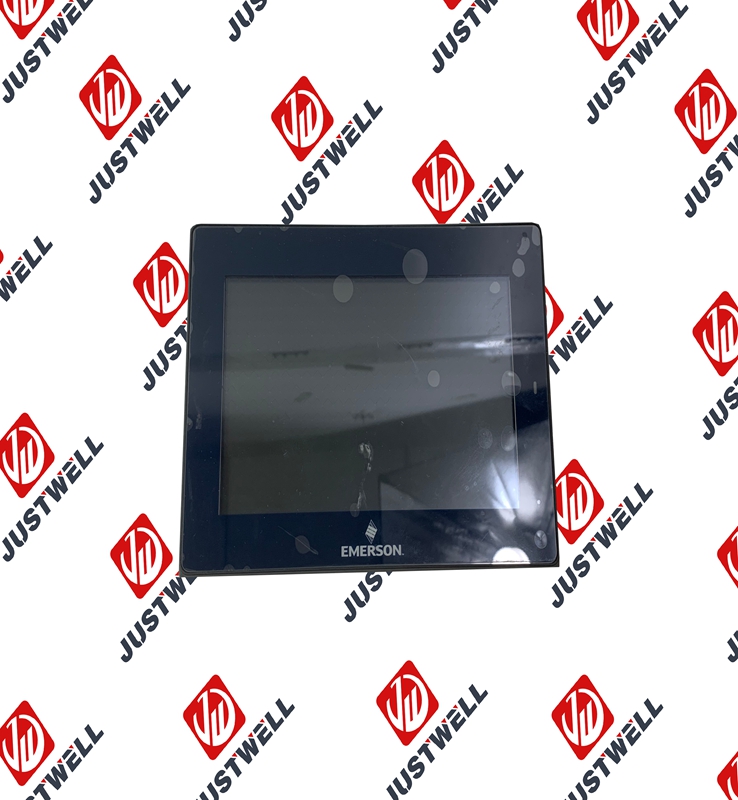

The IC755CSW07CDACA-FY is a QuickPanel+ 7-inch Widescreen Operator Interface. It is designed to function as more than just a Human Machine Interface (HMI); it integrates a multi-touch screen with a robust processor to handle complex automation tasks. This specific model features a color TFT LCD display and is powered by an ARM Cortex-A8 processor, running on the Windows Embedded Compact 7 operating system. It provides a comprehensive solution for monitoring and controlling industrial processes in real-time.

Product Parameters

Display Type: 7-inch Color TFT LCD widescreen
Resolution: 800 x 480 pixels (WVGA)
Touchscreen: Projective Capacitive (PCAP) multi-touch
Processor: Freescale i.MX535 (ARM Cortex-A8) $1 \text{ GHz}$
Memory: $512 \text{ MB}$ DDR2 SDRAM and $256 \text{ MB}$ SLC NAND Flash
Operating System: Microsoft Windows Embedded Compact 7
Input Voltage: $24 \text{ VDC}$ (nominal range $12 \text{ VDC}$ to $30 \text{ VDC}$ )
Communication Ports: One 10/100 Base-T Ethernet port, one RS-232 serial port (5-pin), and two USB 2.0 ports (one Type A and one Mini-B)
Storage Expansion: SD/SDHC card slot for additional data logging and storage
Audio: Integrated internal speaker and one line-out jack
Operating Temperature: $0\text{°C}$ to $50\text{°C}$ ( $32\text{°F}$ to $122\text{°F}$ )

Product Advantages

All-in-One Integration: This unit provides a "three-in-one" capability, functioning as an HMI, a PLC (through logic execution), and a data gateway, which reduces panel space and hardware costs.
Enhanced User Experience: The multi-touch capacitive screen allows for modern smartphone-like gestures such as pinching, zooming, and swiping, making it highly intuitive for operators.
High Performance: With its $1 \text{ GHz}$ processor, the module offers fast screen updates and rapid response times even when running data-intensive logic and communication protocols simultaneously.
Open Architecture: Based on Windows EC7, it supports various third-party applications and allows for flexible integration into existing IT and OT infrastructures.
High Visibility: The widescreen format provides $25\%$ more display area than a standard 4:3 6-inch display, allowing for more detailed graphics and status information.

Important Considerations and Precautions

Installation Environment: Ensure the unit is mounted in a location that meets its NEMA 4X or IP66 rating requirements. The gasket must be seated properly to maintain its seal against liquids and dust.
Power Supply Stability: Use a Class 2 power supply. The device is sensitive to voltage fluctuations outside the $12\text{--}30 \text{ VDC}$ range, which could cause system instability or hardware failure.
Touchscreen Care: Avoid using sharp objects or abrasive cleaners on the capacitive glass surface. Clean only with a soft, damp cloth to prevent scratches or damage to the touch sensors.
Electrostatic Discharge (ESD): When handling the internal components or SD cards, follow standard ESD precautions to avoid damaging the sensitive electronic circuitry.
Explosive Atmospheres: Check for specific hazardous location certifications (such as ATEX or UL Class I Div 2) before installing the unit in environments where flammable gases or vapors may be present.

Product Applications

The IC755CSW07CDACA-FY is widely used in industries requiring precise local control and high-quality visualization.

Water and Wastewater: Monitoring pump stations, tank levels, and filtration processes where a rugged, waterproof interface is necessary.
Food and Beverage: Controlling processing equipment and packaging lines, where the multi-touch interface allows for easy navigation of complex recipes and machine states.
Oil and Gas: Serving as a local monitoring terminal for wellheads or pipeline segments, providing data logging and remote connectivity.
Machine Tools: Integrating directly into CNC or specialized fabrication machines to provide an operator interface for motion control and diagnostics.
Automotive Manufacturing: Managing robotic cells or conveyor systems where high-speed data processing and Ethernet connectivity are required for plant-wide integration.
