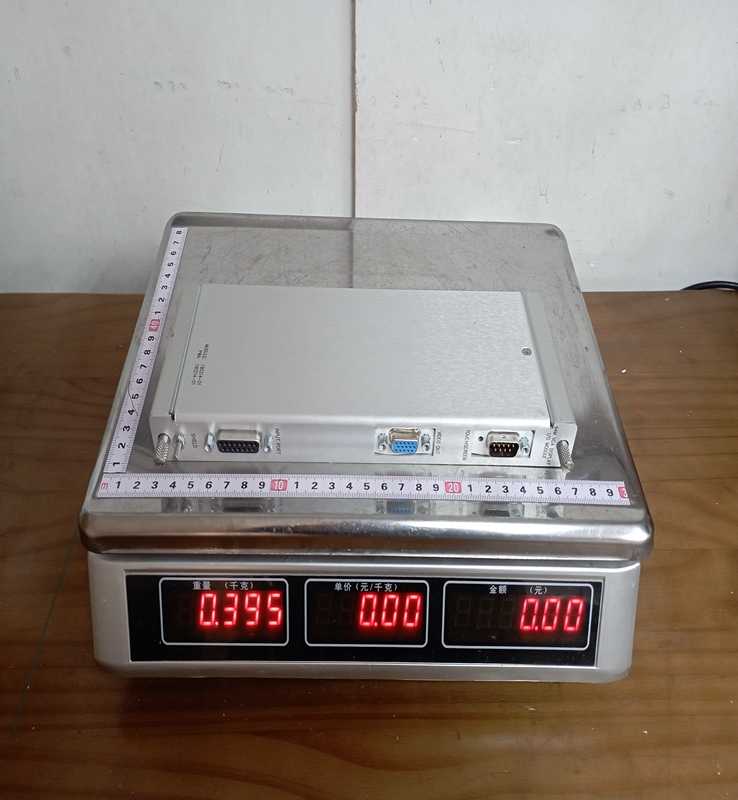

190214-01 BENTLY NEVADA

190214-01 Bently Nevada Interface Module

Brand：BENTLY NEVADA Model number：190214-01

Country of origin: U.S. Product weight：0.55kg

HS code：8517623990

Product Details：

Product Dimensions：

The 190214-01 Normal I/O Module is designed to translate complex vibration and system data from the 3500 rack into a format suitable for visual display. It works in conjunction with the 3500/94M VGA Display Module (located in the front of the rack). This I/O module provides the physical ports for VGA signal output and RS232 communication, which is used to process touch-screen commands from the monitor. By integrating this module, users can view alarm event lists, system event lists, and all module/channel data directly on the machinery deck or in a control room without needing a full workstation.

Product Parameters

The technical specifications of the 190214-01 module emphasize its ability to operate within high-demand industrial environments while maintaining data integrity.

Module Type: 3500/94M Normal I/O Module.
Rack Space Requirements: Occupies one full-height rear slot in a 3500 series instrument rack.
Power Consumption: Typically 4.6 watts to 5 watts maximum, drawing power from the 3500 rack backplane.
Input Signals: Accepts RS232 serial data for touch-screen control inputs.
Output Signals: Provides standard VGA video output for external monitors and 24 Vdc power for display devices.
Dimensions: Approximately 241.3 mm in height, 24.4 mm in width, and 99.1 mm in depth.
Weight: Approximately 0.34 kg (0.75 lb).
Operating Temperature: -20°C to 65°C (-4°F to 149°F).
Storage Temperature: -40°C to 85°C (-40°F to 185°F).
Humidity: Up to 95% non-condensing relative humidity.

Product Advantages

Enhanced Visualization: It enables the display of up to nine custom-configured screens, allowing operators to group machinery data into relevant "trains" for faster diagnostic assessment.
Real-Time Diagnostics: The module provides immediate access to OK status and alarm events without requiring a separate PC or software interface, which is vital during critical machine startups or trips.
Rugged and Reliable: Built to Bently Nevada's high standards, the module is designed for 24/7 operation in harsh industrial environments such as power plants and offshore rigs.
Flexible Monitoring: When used with a Keyboard Video Monitor (KVM) extender, the signal can be sent to monitors up to 10 kilometers away, offering massive flexibility in facility layout.
Reduced System Load: By offloading display processing to a dedicated module, the rack's primary monitoring functions remain unburdened and focused on machinery protection.

Important Considerations

Cable Length Limits: Standard VGA signals are limited to approximately 6 meters (20 feet). Attempting to use longer cables without a KVM extender will result in significant image degradation and potential signal loss.
Hazardous Area Safety: While the 3500 rack is often located in controlled areas, the external display components must be carefully vetted. Specifically, many KVM transmitters are not rated for hazardous areas and must be installed in safe zones.
Environmental Protection: The module has an IP54 or NEMA 12 rating when properly installed in an enclosure. Ensure the rack is kept within the specified temperature range; if temperatures fall below -20°C, a heated enclosure is required.
Configuration Requirements: The module must be configured using the 3500 Rack Configuration Software to define the data pages and custom screens that will be displayed.
Power Supply Integration: Ensure the 3500/15 power supply in your rack has sufficient capacity to power the 94M system, especially if you are connecting high-draw peripherals.

Product Applications

The 190214-01 is used across various heavy industries where machinery protection is non-negotiable and local data visibility is required.

Oil and Gas: Monitoring large centrifugal compressors and turbines on offshore platforms or in refineries.
Power Generation: Local display of vibration data for steam and gas turbines in thermal or nuclear power plants.
Water Treatment: Tracking the health of large pumps and motors in remote pumping stations.
Mining and Metals: Used in the protection of large fans, blowers, and kilns that operate in high-vibration environments.
Aerospace and Automotive: Test stand monitoring where real-time visualization of high-speed rotating equipment is necessary for safety and data collection.
