C6930-0050 BECKHOFF

Product Dimensions：

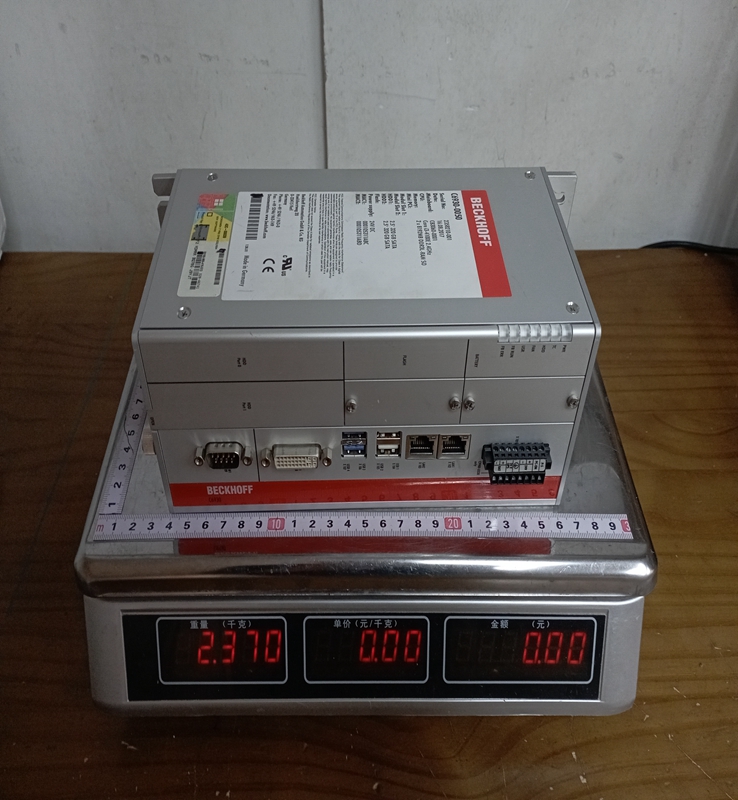

The technical foundation of the C6930-0050 is designed for reliability and speed. It is equipped with an Intel Core i7-4700EQ processor running at $2.4 \text{ GHz}$, providing substantial processing power for demanding PLC and motion control software. The memory configuration includes 2 x 2048 MB DDR3L-RAM SO, ensuring smooth multitasking. For data storage, it typically features a 240 GB 3D-Flash SSD or dual 320 GB SATA hard disks, managed by an integrated SATA RAID 1 controller for high data security through mirroring. The unit requires a 24 V DC power supply and consumes a maximum of $60 \text{ W}$ in its basic configuration. Physically, the device measures approximately 90 x 235 x 121 mm and weighs around $2.1 \text{ kg}$, with an IP20 protection rating. Connectivity is comprehensive, featuring two independent Gigabit Ethernet interfaces, four USB 3.0 ports, one RS232 serial port, and a DVI-D connector for display output.

Product Advantages

One of the primary benefits of the C6930-0050 is its scalable performance. By utilizing high-end Intel Core i7 processors, it can manage complex multi-axis motion control and extensive HMI tasks simultaneously. Its compact industrial design is another major advantage; all connections are located on the front of the housing, allowing for easy access and wiring within narrow control cabinets. The robust cooling system, which utilizes cooling fins on the side panel, allows for efficient heat dissipation and stable operation in ambient temperatures up to $55\text{°C}$. Furthermore, the inclusion of a RAID controller provides enhanced data availability, ensuring that the system remains operational even if one storage drive fails. The module is also highly flexible, supporting various expansion options via PCIe or PCI slots for additional Ethernet, USB, or Fieldbus interfaces.

Important Considerations

When implementing the C6930-0050, it is vital to ensure that trained specialists familiar with automation technology handle the installation and maintenance. To maintain proper thermal performance, a minimum of 5 cm of free space must be kept above and below the PC to facilitate air circulation. Before performing any maintenance, such as opening the front flap to access the battery or storage drives, the power supply must be completely disconnected to avoid the risk of electric shock or damage to electronic components. Additionally, the lithium battery should only be replaced with an identical or manufacturer-recommended type, ensuring correct polarity. Because this model is part of a legacy series, users should verify the current availability of spare parts and consider future migration paths to newer Beckhoff IPC generations for long-term support.

Product Applications

The C6930-0050 is ideal for a wide range of sophisticated industrial applications. In mechanical engineering, it serves as a central processing unit for EtherCAT control systems, coordinating high-speed motion and logic. In process automation, its high processing power and RAID data security make it suitable for managing large-scale data acquisition and monitoring systems. It is also frequently used in robotics and assembly lines where real-time performance and compact mounting are critical. When combined with Beckhoff’s TwinCAT automation software, the C6930-0050 transforms into a powerful controller capable of executing high-precision tasks in industries ranging from automotive manufacturing to energy management and smart building control.
