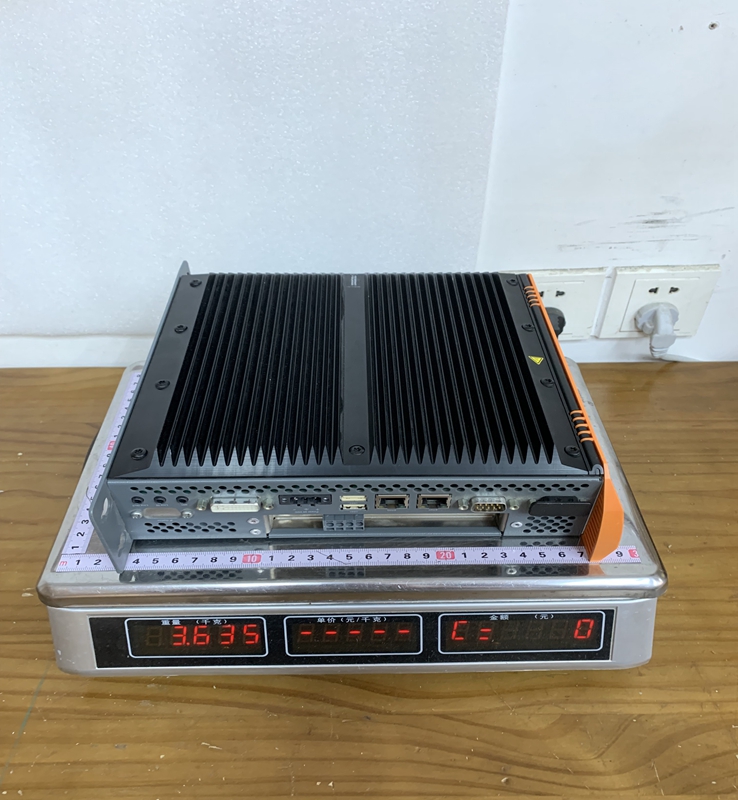

5PC600.SX01-00 B&R

Product Dimensions：

The 5PC600.SX01-00 is the core system unit or "housing" of the Automation PC 600. It is designed with a modular architecture, allowing users to combine it with various slide-in compact units (CPU boards), interfaces, and mass storage devices. This specific system unit is engineered for cabinet installation and provides the electrical backbone and mechanical structure for the industrial PC. It features integrated slots for expansion and is built to withstand the harsh conditions of factory floors, including high temperatures and mechanical vibrations. It typically houses the motherboard and provides the external ports necessary for peripheral connectivity.

Product Parameters

• Product Family: Automation PC 600

• Device Type: System Unit (Base Module)

• Slot Configuration: Features specific slots for B&R slide-in compact units and interface modules.

• Input Voltage: Typically $24 \text{ VDC}$ (nominal range $18$ to $30 \text{ VDC}$).

• Cooling System: Available in both fan-free (passive) or fan-supported versions depending on the installed CPU power.

• Housing Material: Zinc-plated metal sheet with an aluminum front for electromagnetic compatibility (EMC) and durability.

• Interface Options: Supports standard PC interfaces such as USB, Ethernet (10/100/1000 Mbit/s), and serial ports (RS-232), as well as B&R-specific fieldbus cards like POWERLINK.

• Operating Temperature: $0\text{°C}$ to $50\text{°C}$ ($32\text{°F}$ to $122\text{°F}$) under standard operating conditions.

• Protection Rating: IP20 (intended for installation in a control cabinet).

Product Advantages

A major advantage of the 5PC600.SX01-00 is its Modular Scalability. Because the system unit is separate from the CPU and memory, users can upgrade the processing power in the future without replacing the entire housing and wiring. The Industrial-Grade Reliability is another highlight; B&R utilizes high-quality components and a fanless design option to eliminate moving parts, which are the most common points of failure in standard PCs.

The Real-Time Capability is a critical advantage for automation; when used with B&R’s Automation Runtime or specialized fieldbus cards, the PC can manage high-speed motion control and logic tasks with microsecond precision. Additionally, the Long-Term Availability of B&R components ensures that machine builders can source the same hardware for many years, simplifying spare parts management and software maintenance.

Important Considerations and Precautions

When configuring the 5PC600.SX01-00, it is vital to perform a Thermal Analysis. If high-performance CPU modules are used, adequate ventilation or forced cooling must be provided to prevent thermal throttling or hardware damage. Users must ensure that Proper Grounding is established via the DIN rail or mounting plate to protect the PC from electrostatic discharge (ESD) and electromagnetic noise.

Another precaution involves Mass Storage Selection; for high-vibration environments, B&R recommends using Industrial CompactFlash or Solid State Drives (SSD) rather than traditional rotating Hard Disk Drives (HDD). When performing maintenance, always Backup the System Data and shut down the operating system correctly before removing the power supply, as sudden power loss can lead to file system corruption in Windows-based industrial environments. Finally, ensure that any Expansion Cards are compatible with the specific BIOS and chipset version of the installed system unit.

Product Applications

The B&R 5PC600.SX01-00 is used in complex automation scenarios where high data throughput and real-time control are required.

• Human Machine Interface (HMI): Acting as the powerful backend for large-scale, high-resolution visualization systems in process control rooms.

• Data Logging and Edge Computing: Collecting, pre-processing, and transmitting production data from the factory floor to higher-level ERP or Cloud systems.

• Complex Motion Control: Coordinating dozens of axes in high-speed packaging machines or robotic assembly lines using POWERLINK.

• Machine Vision: Serving as the processing hub for industrial cameras to perform real-time quality inspections and sorting.

• Test Bench Automation: Running specialized simulation and measurement software in automotive or aerospace R&D labs.

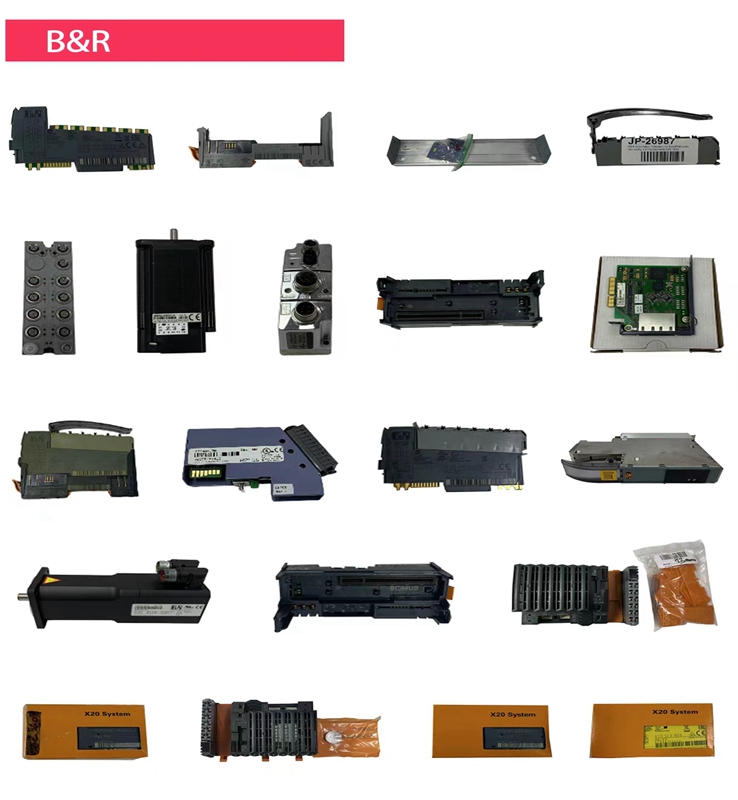

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！
