2711-T10C3 Allen-Bradley

2711-T10C3 Allen-Bradley Central control module

Brand：Allen-Bradley Model number：2711-T10C3

Country of origin: United States Product weight：0.55kg

HS code：8517623990

Product Details：

Product Dimensions：

The 2711-T10C3 features a 10.1-inch color active-matrix TFT display that supports high-resolution graphics for complex industrial applications. As a touchscreen-only model, it utilizes an analog resistive touch interface, allowing users to navigate screens and input data by directly touching the display area. It is built to withstand harsh industrial environments, often coming in enclosures rated for NEMA Type 12, 13, or 4X. The unit includes a built-in DH-485 communication port for connecting to PLC and SLC controllers, along with a dedicated RS-232 port primarily intended for printer connection to output alarms and data logs.

Technical Specifications

Display Type: Color Active Matrix TFT LCD
Display Size: 10.1 inches diagonal
Resolution: $640 \times 480$ pixels
Operator Input: Analog resistive touchscreen ( $24 \times 16$ touch cells)
Input Voltage: $85\text{--}264 \text{ VAC}$ ( $47\text{--}63 \text{ Hz}$ )
Power Consumption: Approximately $55 \text{ VA}$

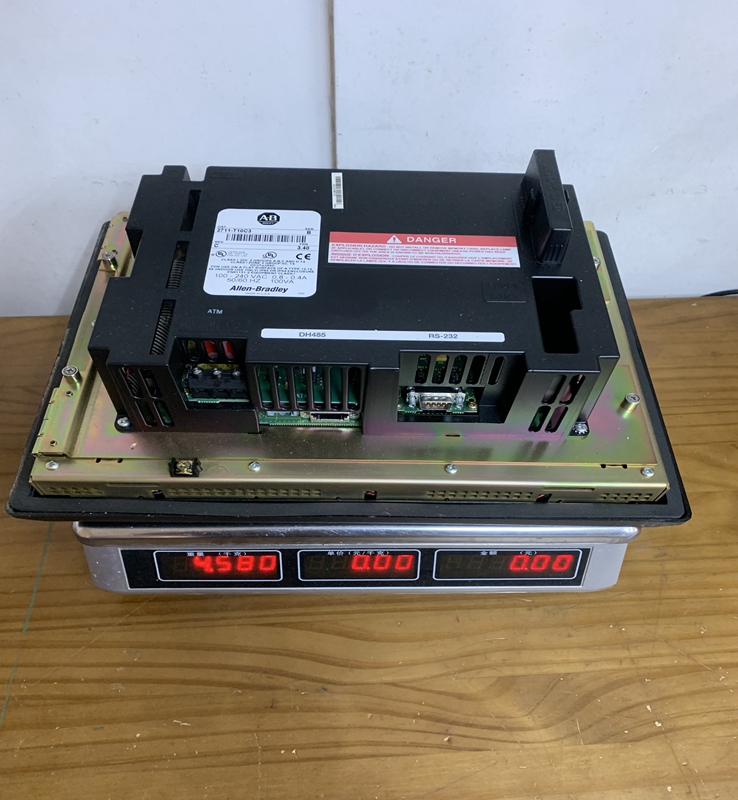

Communication Ports: DH-485 (networking) and RS-232 (printer)
Application Memory: $1008 \text{ KB}$ non-volatile Flash memory
Runtime Memory: $310 \text{ KB}$ RAM
Backlight: Field-replaceable CCFL or LED with a typical life of 50,000 to 100,000 hours
Operating Temperature: $0 \text{ to } 55 \text{°C}$ ( $32 \text{ to } 131 \text{°F}$ )
Weight: Approximately $3.6 \text{ kg}$ ( $8 \text{ lbs}$ )

Product Advantages

Intuitive Operation: The resistive touchscreen provides a natural way for operators to interact with machinery, reducing the need for external keyboards or mice.
Vibrant Visualization: The color display allows for color-coded status indicators, detailed bar graphs, and realistic plant floor representations, which improves operator response time.
Rugged Reliability: Designed specifically for industrial use, it resists vibration, temperature fluctuations, and contaminants when properly mounted.
Advanced Alarm Handling: The system can record, display, and print critical alarm data, ensuring that maintenance personnel are quickly notified of fault conditions.
Universal Support: Supports over 46 languages, making it a versatile choice for global manufacturing operations.

Important Precautions

Hazardous Locations: This equipment is often suitable for Class I, Division 2 environments. However, you must never disconnect the equipment or battery unless the power has been removed or the area is known to be non-hazardous.
Electrostatic Discharge (ESD): The internal components are sensitive to ESD. Always touch a grounded object or wear a grounding strap before handling the unit or its internal boards.
Screen Protection: Avoid exposing the LCD to direct sunlight for prolonged periods, as UV rays can degrade the display quality and shorten the life of the screen.
Cleaning: Clean the touchscreen only with a soft, damp cloth and mild non-abrasive detergent. Harsh chemicals or sharp objects can permanently damage the resistive touch layer.
Mounting: Ensure the terminal is mounted in a well-grounded metal panel to maintain electromagnetic compatibility and protect against electrical noise.

Product Applications

The 2711-T10C3 is widely used across various sectors where real-time monitoring and control are essential:

Manufacturing and Assembly: Used to control production lines, monitor machine cycles, and display assembly instructions in automotive and electronics plants.
Food and Beverage: Ideal for monitoring temperature, flow rates, and batch processing in environments that require cleanable, durable interfaces.
Water and Wastewater: Provides a central interface for managing pumps, valves, and chemical dosing systems in treatment facilities.
Material Handling: Commonly found in warehouse automation for controlling conveyor systems and sorting machinery.
Oil and Gas: Used for local monitoring of compressors, separators, and wellhead controllers in rugged field locations.
